GE LOGIQ E9

Getting Started
1-28 LOGIQ E9 – User Guide
Direction 5454884-100 English
Rev. 1
Probes
Introduction
Only use approved probes.

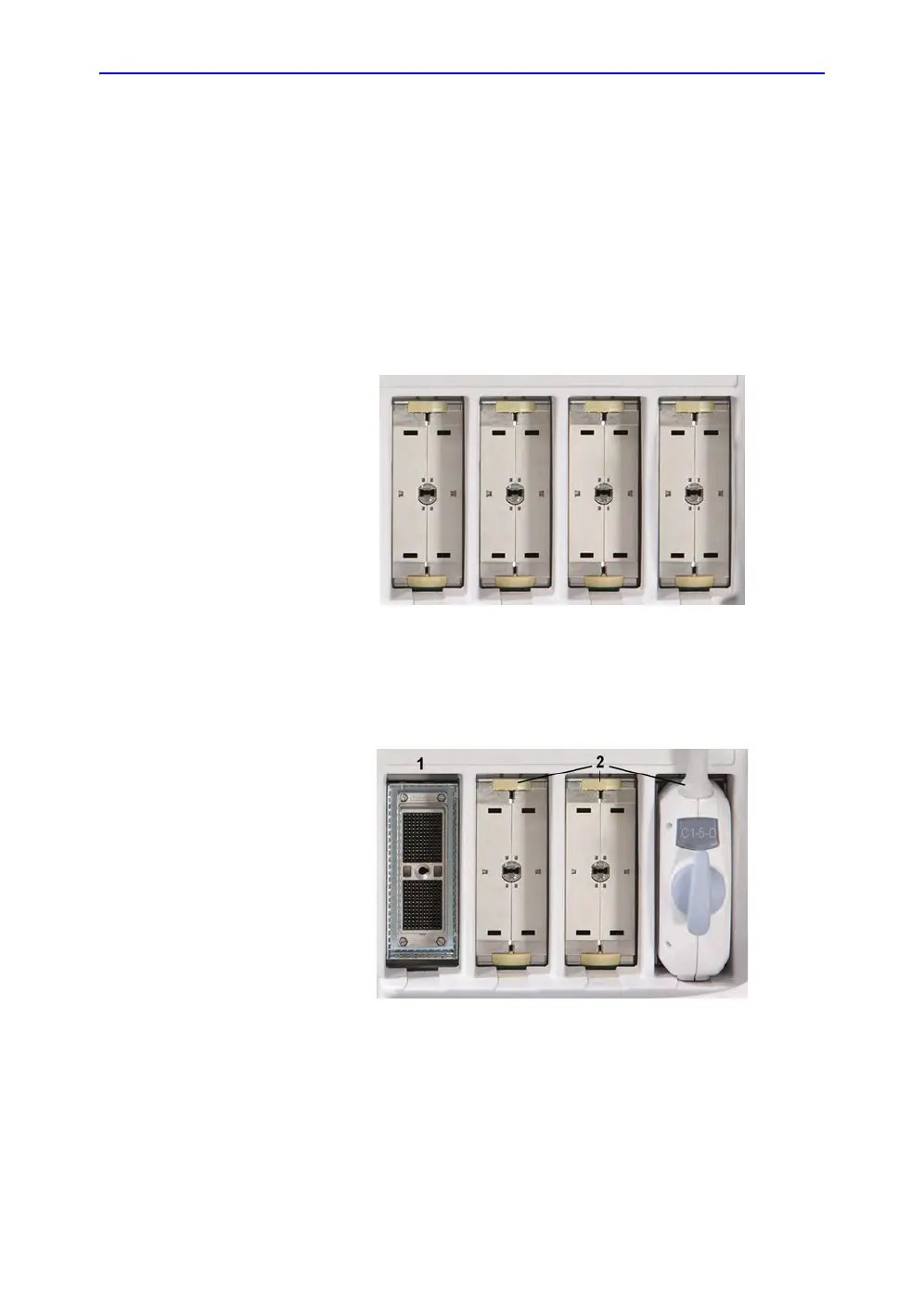

Figure 1-15. 4 DLP Probe Port Connectors
DO NOT plug any LOGIQ 9 probes into the LOGIQ E9 system.
Use the left-most probe port for the 3CRF, S1-5, S4-10, and 6Tc
probes; use the 3 right probe ports for any “___-D” probe.
Figure 1-16. 1 Non-DLP and 3 DLP Probe Port Connectors
1. 3CRF, S1-5, S4-10, and 6Tc Probe Connector
2. _____-D Probe Connector
