GE LOGIQ E9

Console Overview
LOGIQ E9 – User Guide 1-7
Direction 5454884-100 English Rev. 1
Console Graphics
The following are illustrations of the console:

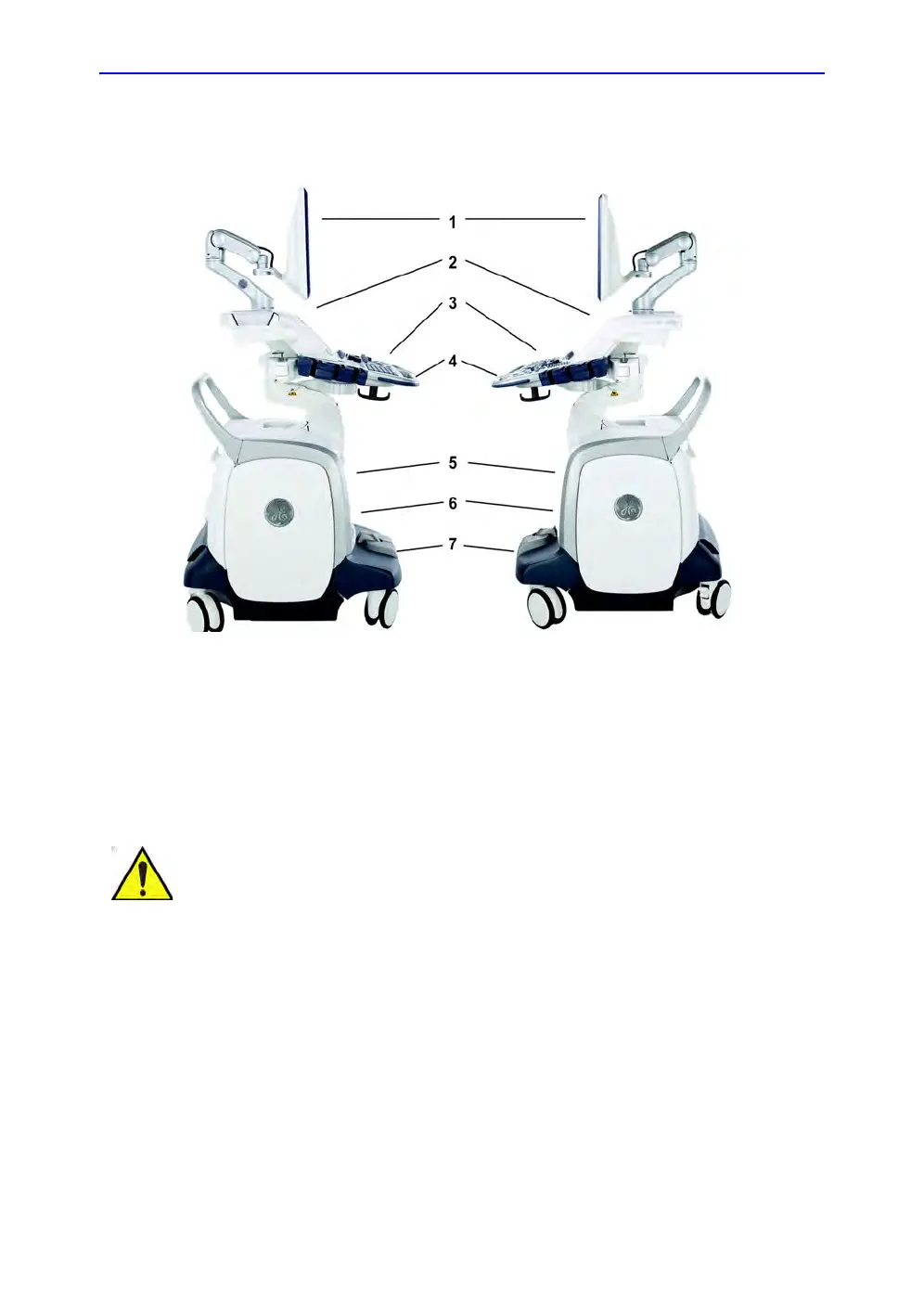

Figure 1-2. LOGIQ E9 System (right and left side views)
1. LCD
2. Gel Holder / Specialty Probe Holder
3. Operator Panel, Probe Holders with Cable
Management
4. Brake Release / Up/Down Controls
5. Peripherals (Black/White Printer, CD/DVD
Drive), V Nav option, and Network Activity/
Speed (Green=1 Gigabyte and Yellow=100 Mb)
and Hard Disk Drive Indicator
6. Probe Connectors
7. Brakes
CAUTION
For compatiblity reasons, use only GE approved probes,
peripherals or accessories.
DO NOT connect any probes or accessories without approval
by GE.
