Safety Precautions
LOGIQ E9
–
User Guide
4-31
Direction 5454884-100 English
Rev. 1
Patient Environmental Devices

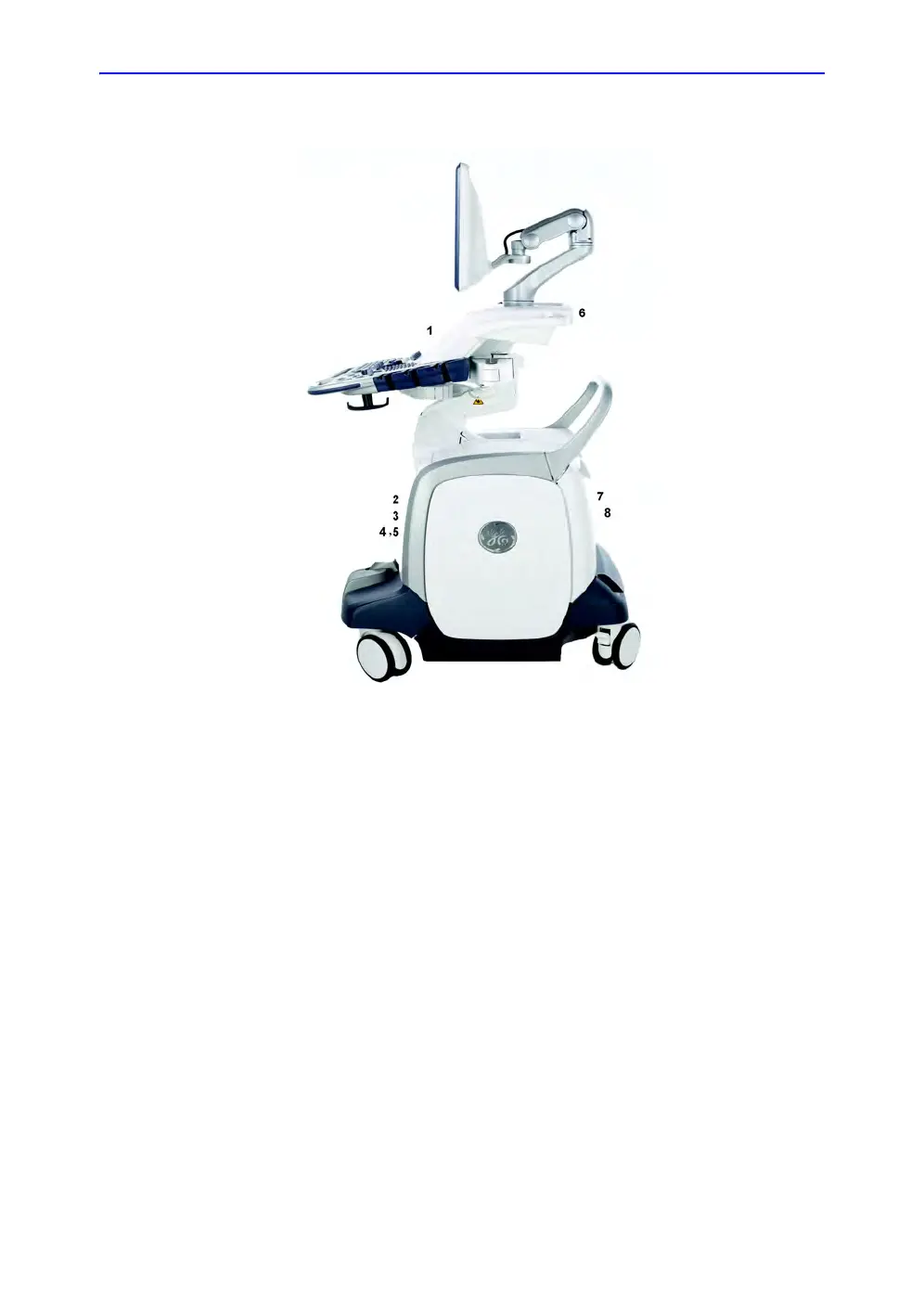

Figure 4-1. Patient Environmental Devices
1. Front Panel (Signal I/O Port, Power On/Off,
USB Ports)
2. Peripheral Devices
DVD Multi Drive (CD, DVD, DVR),
Patient I/O (ECG, CW Probe Port),
V Nav Connectors
3. Network/Disk Indicators, USB Ports
4. Probe Ports (4)
Probe Ports with CW Option (5)
5. Imaging Probes
6. Wireless LAN
7. Power In/Out
Power Line (AC~)
Ground Line
Power Cable with Protective Earth
8. Signals I/O Port (USB Ports, Ethernet
Connector, Audio In/Out, DVI Port Connector,
S-Video Connector)
To Next Page
