Chapter 8 Replacement Procedures 8-15
2) Lift the Keyboard Top view Assembly of Logiq P3 system.Refer Figure 8-11 on page 8-11

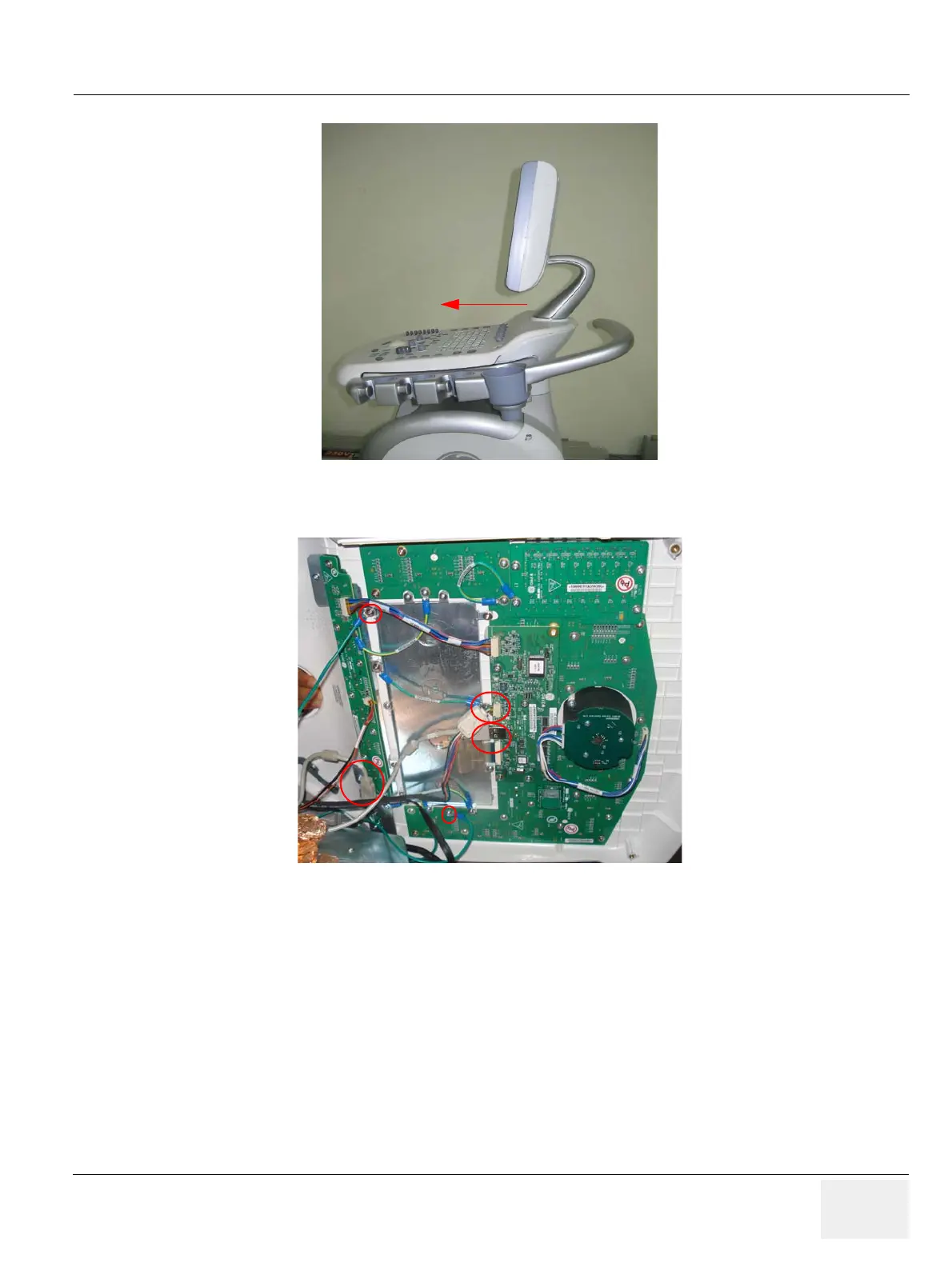

Figure 8-16 Move the keyboard out in the given direction
3) Remove cables from keyboard PCB Assembly of system.Refer Figure 8-17 on page 8-15
Figure 8-17 keyboard cables location
NOTE: To install P/N 5412217-1 on LP3 Systems with 1.0.3 software, additionally order 1.0.5 Software
(P/N 5308912-6 for LP3 EXP; P/N 5315327-6 for LP3 PRO and P/N 5315328-6 for LP3 BW)
Following is the list of Sub-FRUs of P/N 5412217-1.
