GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-50 Section 8-4 - Mechanicals

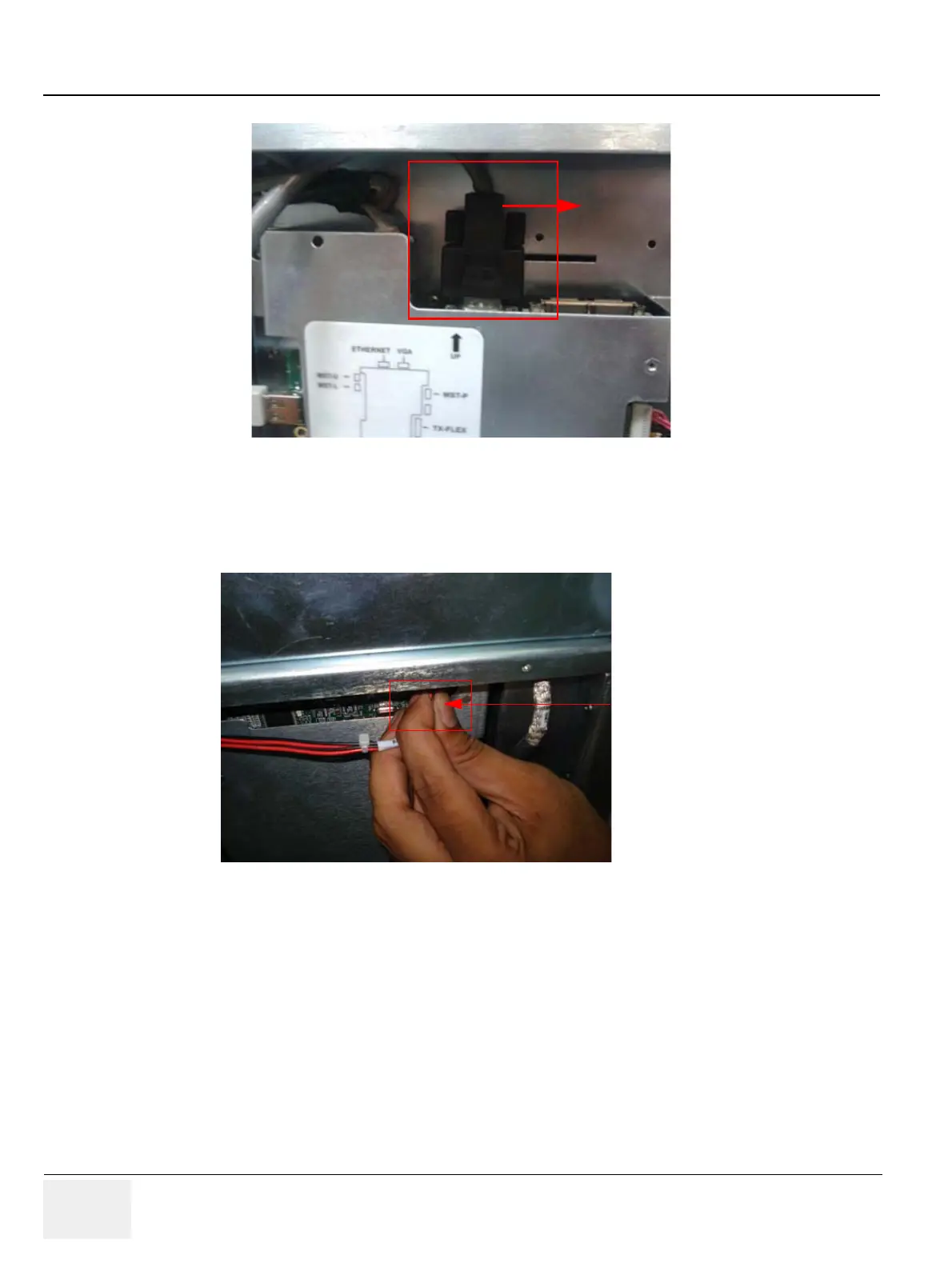

Figure 8-57 Removing the VGA cable
6) Remove the Audio cable from MST board Refer Figure 8-58 on page 8-50
Figure 8-58 Removing Audio cable of MST board
VGA cable
Audio cable
