Chapter 8 Replacement Procedures 8-65

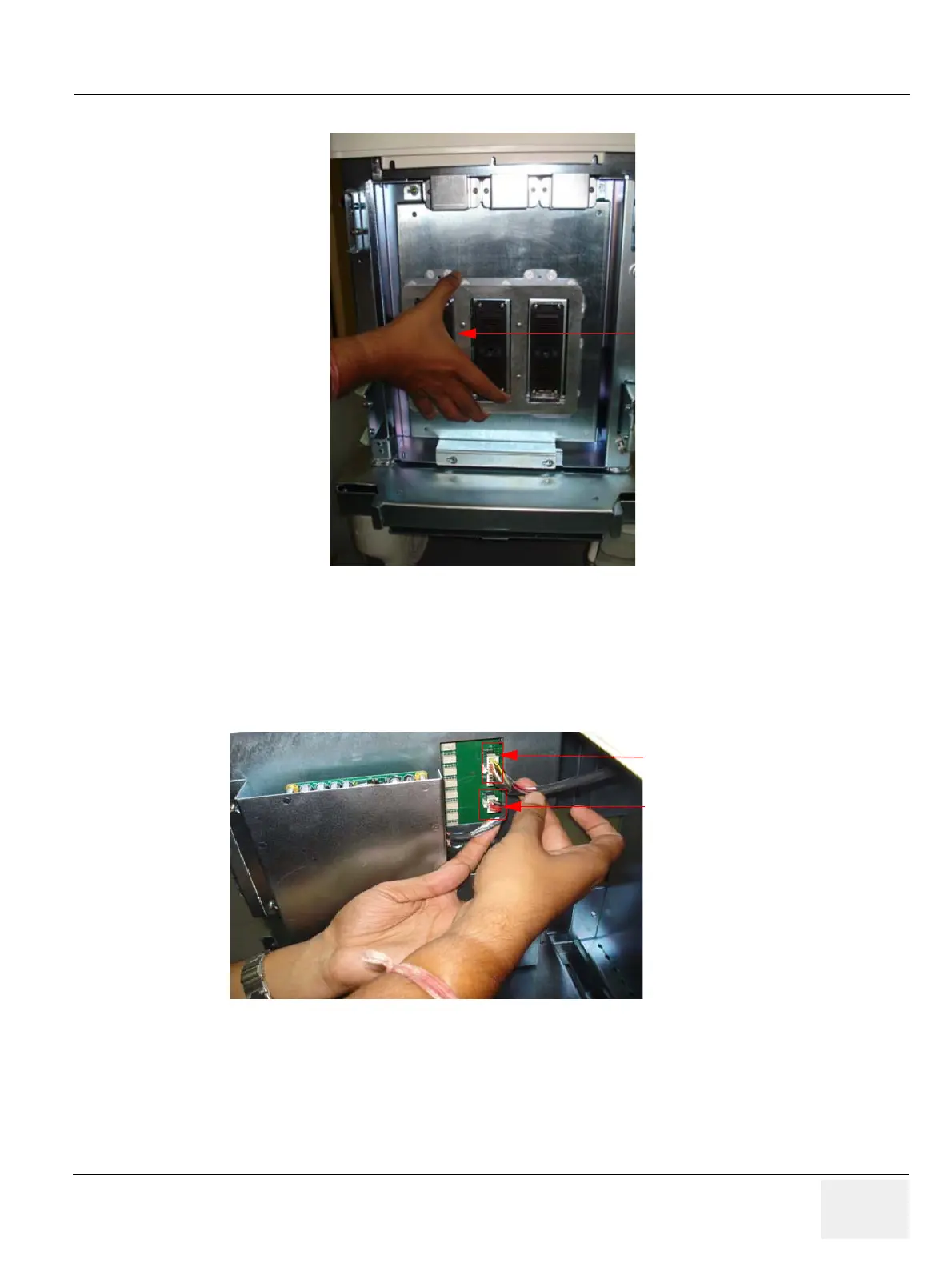

Figure 8-72 Removeing Conn board assembly
5) Remove the conn board TX cable and PDB conn board cable (or power cable).
Refer Figure 8-73 on page 8-65
Figure 8-73 Removing Power cable & Conn board Tx cable
Power cable
Conn board Tx
cable
To Next Page
