GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 3
8-2-1 17 Inch monitor cover set
8-2-1-1 Tools
Common pilIips screwdrivers
Allen/Unbraco wrench
Stubby screwdriver (Flat tip and Cross tip)
8-2-1-2 Removal procedure
1.) Remove the 17" LCD cable cover. Refer to the figure below.
2.) Unscrew 1 screw (2306565, BH M4x16 WHT) to remove the power cord bracket assembled under
the 17" LCD cable cover. Refer to the figure below.

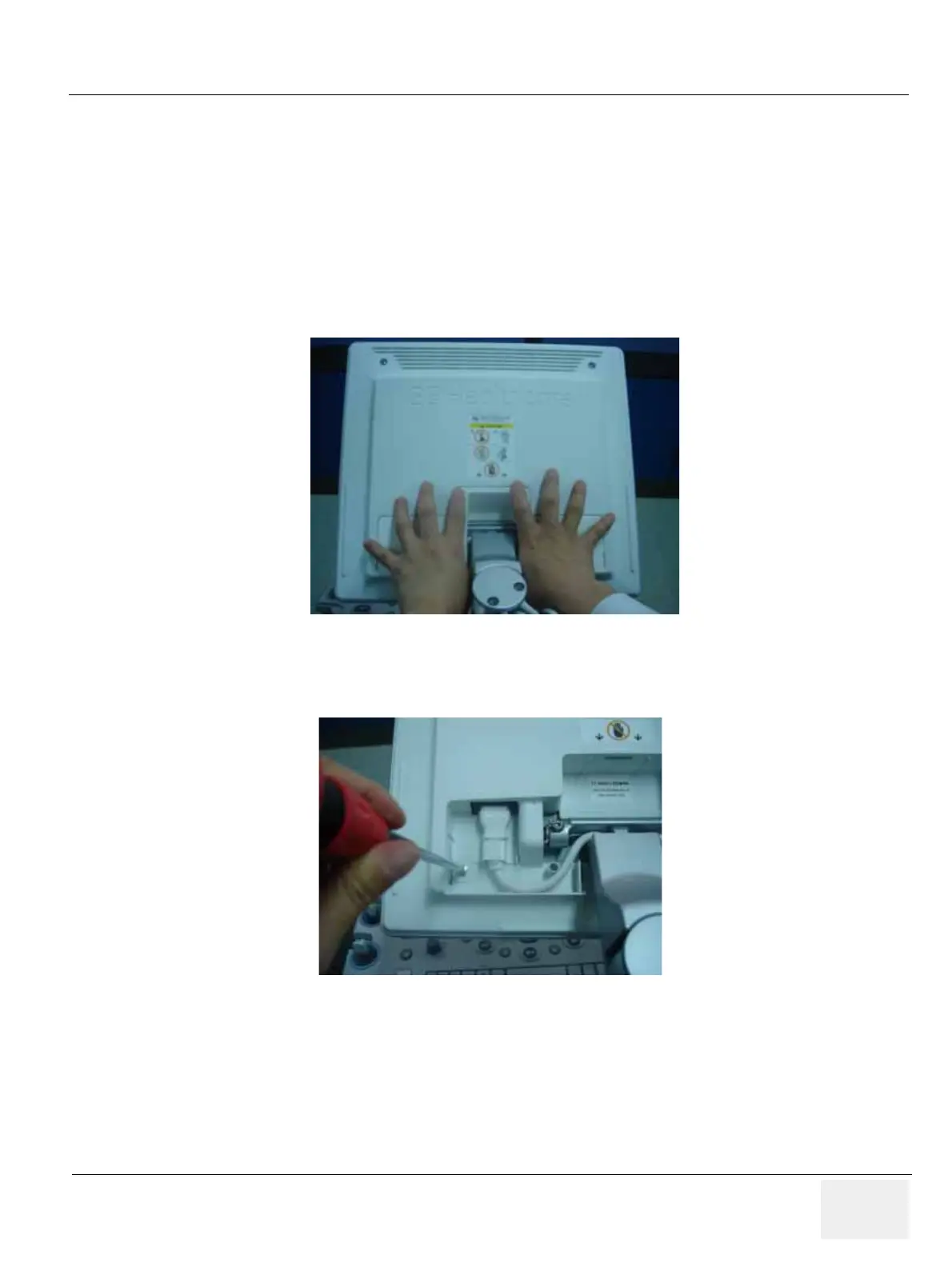

Figure 8-1 Removing the 17" LCD cable cover
Figure 8-2 Removing the power cord bracket
