GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 7
8-2-2 OSD button
8-2-2-1 Tools
•L wrench
• Philips screw driver
8-2-2-2 Preparation
Shut down the system and switch off the main breaker
8-2-2-3 17" LCDMON OSD Key Assy Replace Procedure
1.) Remove the LCD Cable cover. Refer to the figure below.
2.) Unscrew 4 screws to remove the rear cover.Refer to the figure below.

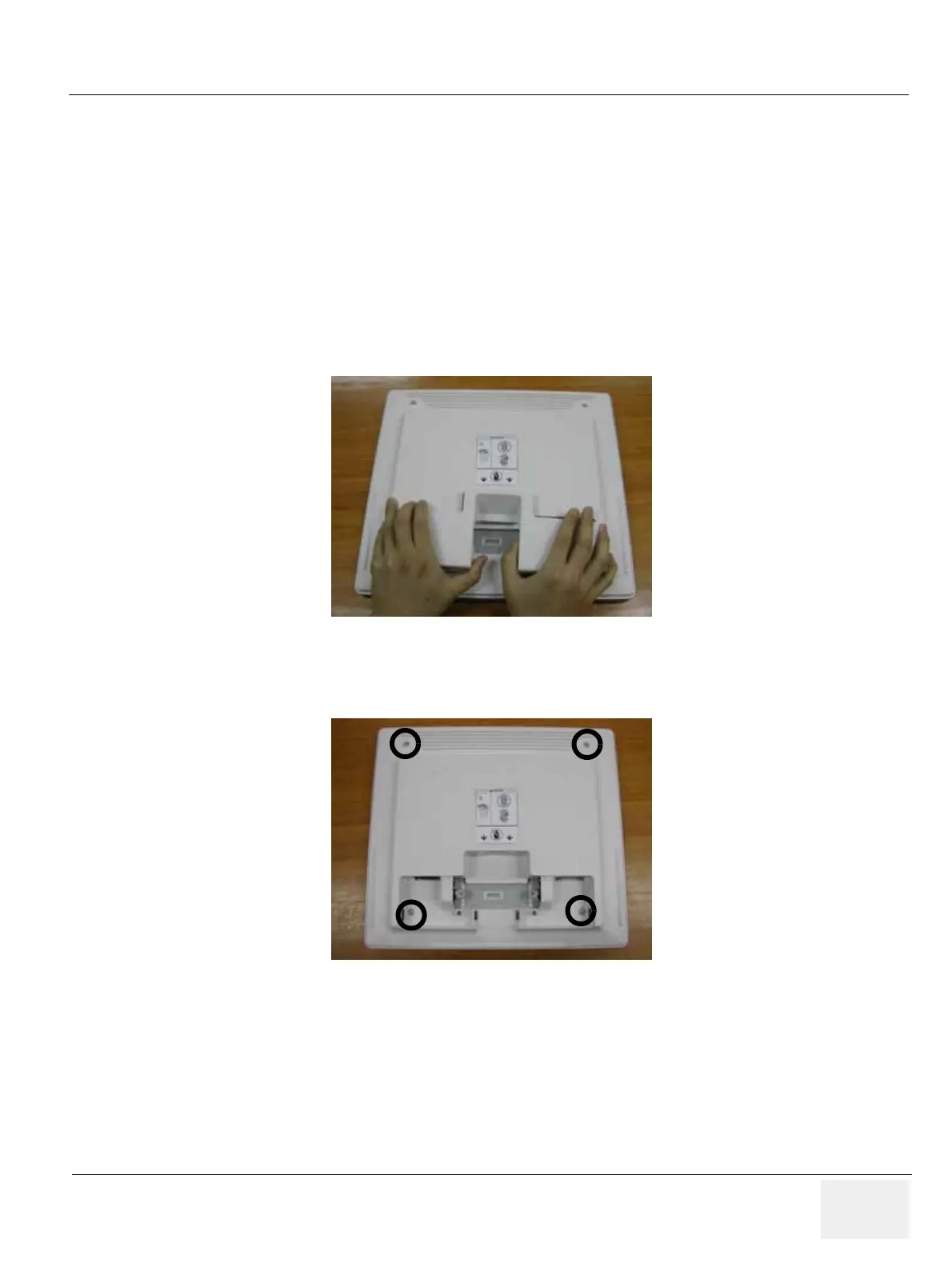

Figure 8-9 Removing the LCD Cable cover
Figure 8-10 Removing the rear cover
