DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 6 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-1-2 Removal procedure (cont’d)
8.) Unscrew 6 screws to remove 17" LCD front cover. Refer to the figure below.
9.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-1-3 Mounting Procedure
Install the each of the new part in the reverse order of removal procedure.

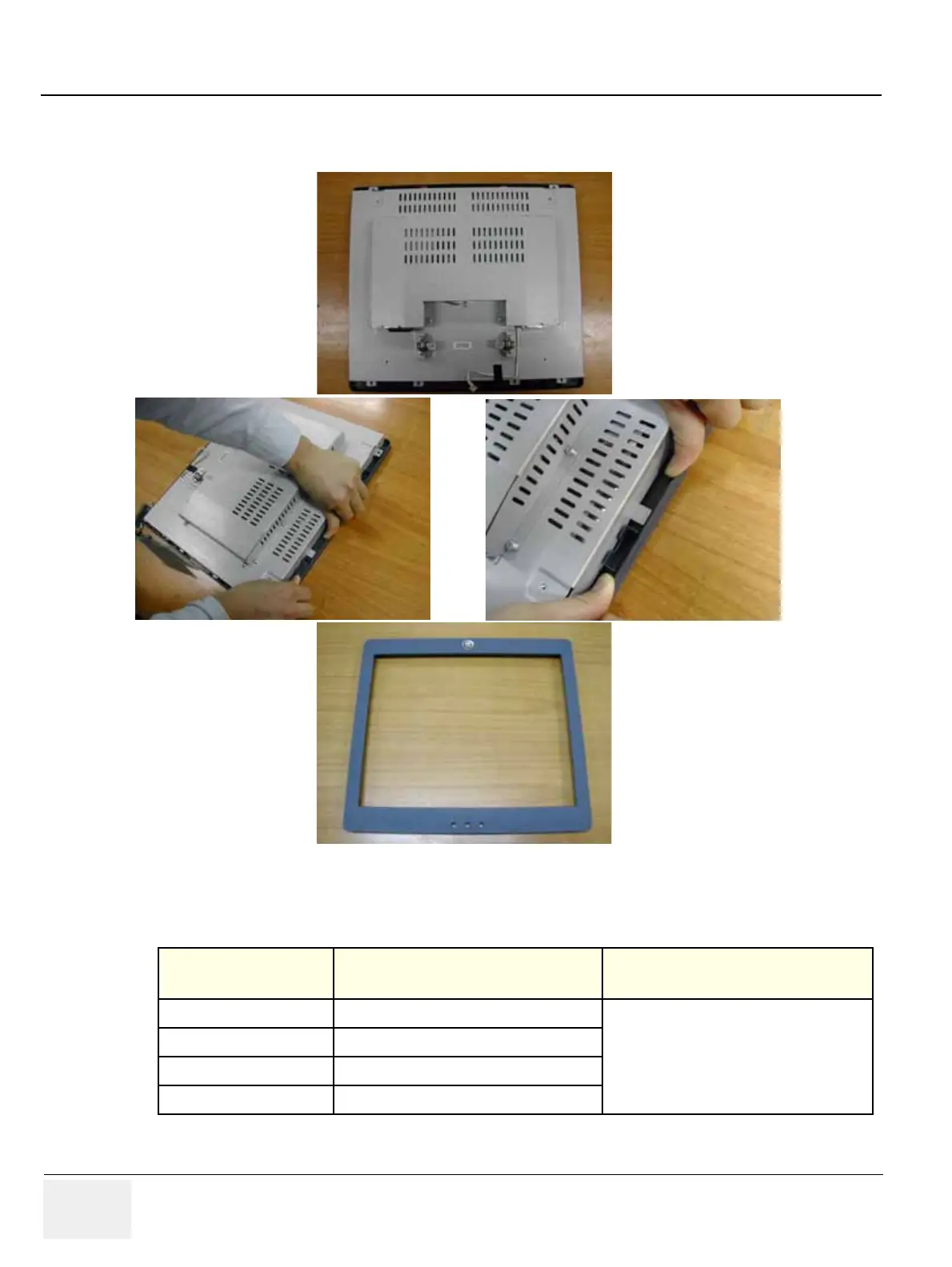

Figure 8-8 Removing the 17" LCD front cover
Table 8-2 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-1. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
