GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 30 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-4-4 Assembly procedure (cont’d)
24.)Screw 2 screws (2337572, FH M3X6 WHT) to assemble the Arm cover L & R. Refer to the figure
below.
25.)Screw 4 screws (2159634, BH M4X10 WHT) to assemble the Arm bottom Cover. Refer to the figure
below.

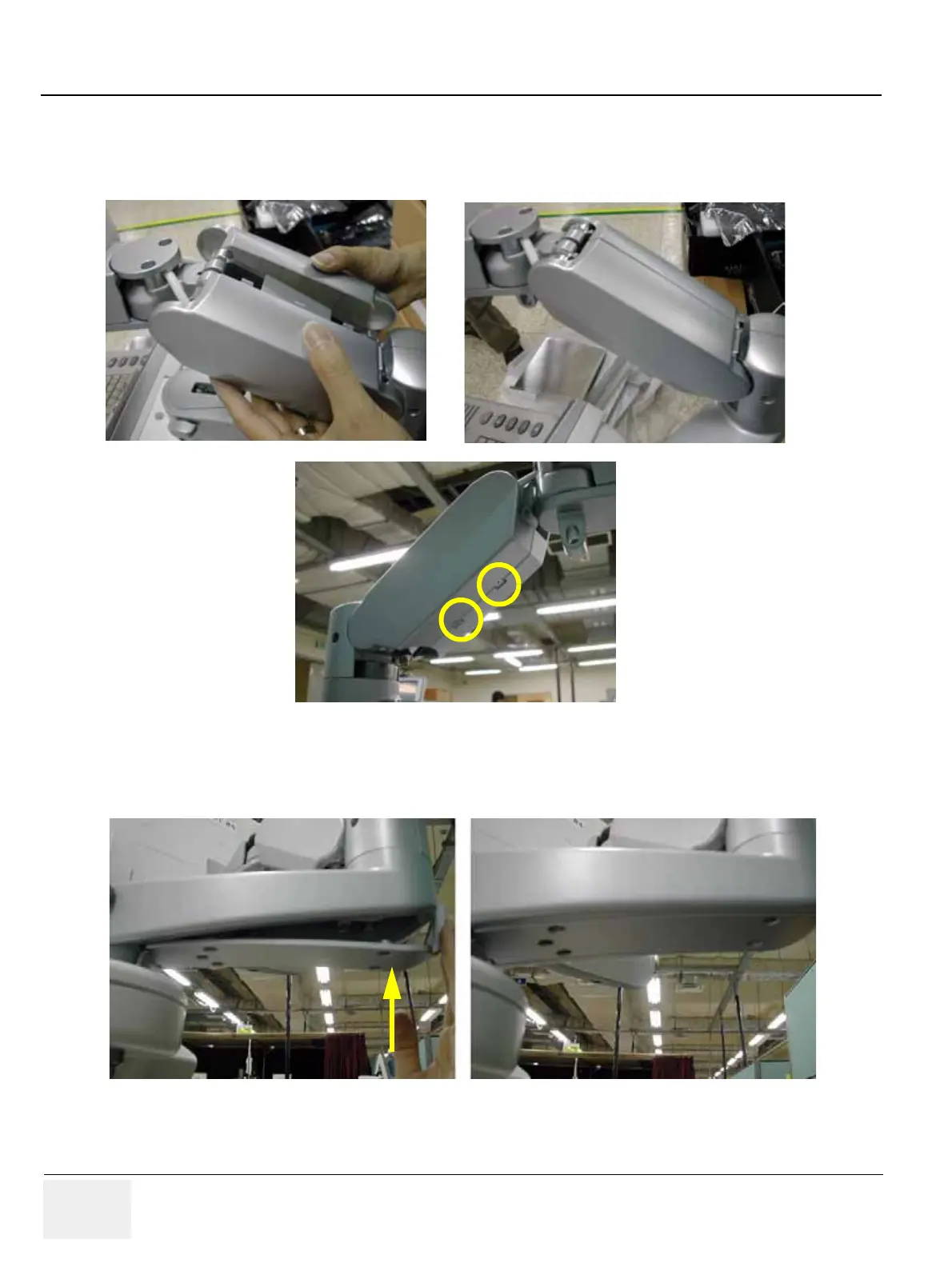

Figure 8-59 Assembling the Arm Cover L & R
Figure 8-60 Assembling the Arm bottom cover
To Next Page
