GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 32 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-5 New Articulation cover set installation Procedure
8-2-5-1 Tools
Common philips screwdrivers
Stubby screwdriver (Flat tip and Cross tip)
8-2-5-2 Preparations
Shut down the system and switch off the main breaker.
Maneuver control console to a suitable position for removing the monitor.
8-2-5-3 Removal procedure
1.) ARM COVER L & R
Unscrew 2 screws (2337572, FH M3x6 WHT) to remove the Arm cover L & R. Refer to the figure below.
2.) ARM CAM COVER L & R
Unscrew 2 screws (2159632, BH M4x6 WHT) to remove the Arm cam cover L & R. Refer to the figure
below.

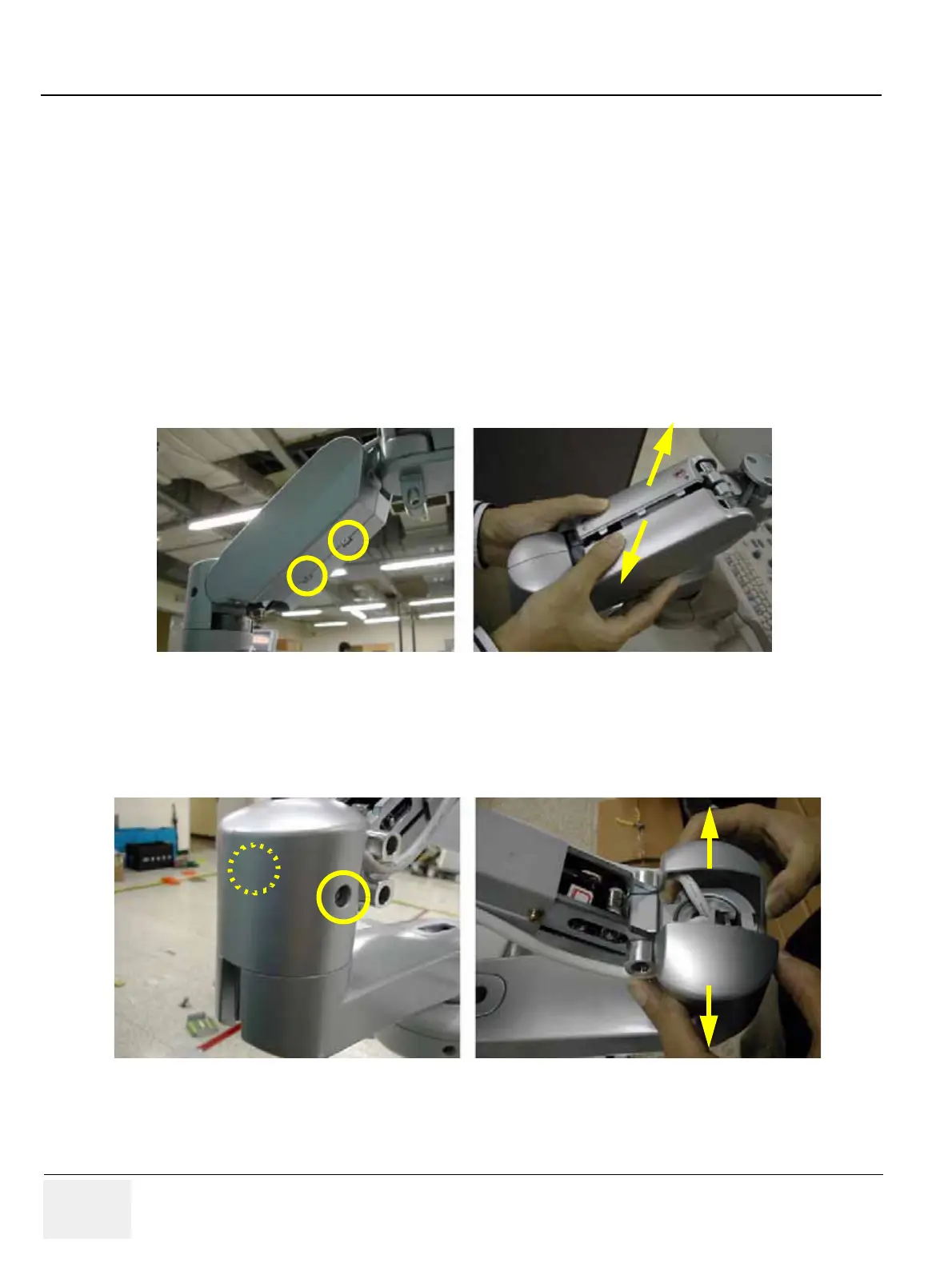

Figure 8-62 Removing the Arm cover L & Arm cover R
Figure 8-63 Removing the Arm cam cover L & Arm cam cover R
