8-2-5-3 Removal procedure (cont’d)
3.) ARM BOTTOM COVER
Unscrew 4 screws (2159634, BH M4x10 WHT) to remove the Arm bottom cover. Refer to the figure
below.
4.) ARM CABLE COVER
Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Arm cable cover. Refer to the figure
below.

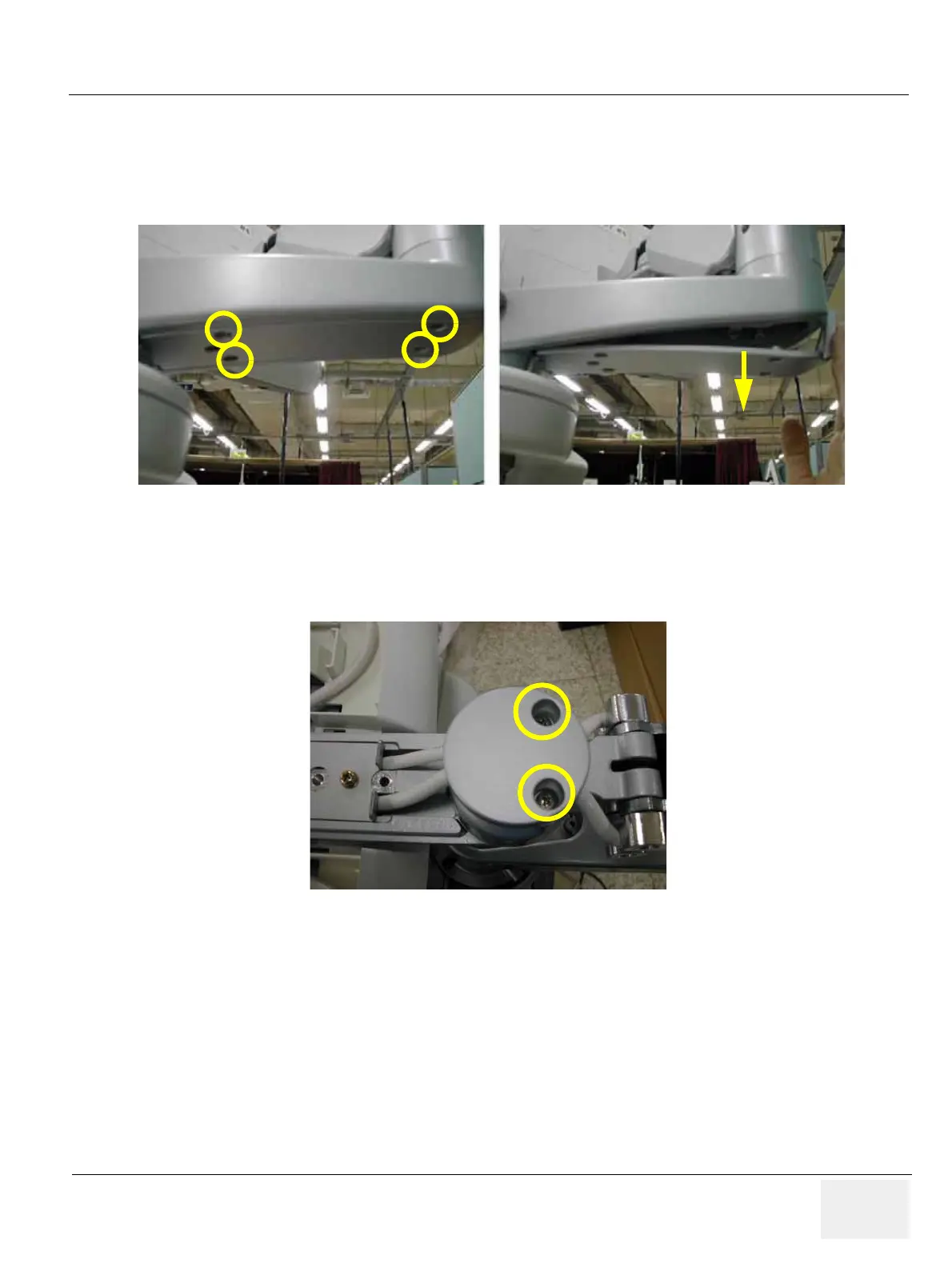

Figure 8-64 Removing the Arm bottom cover
Figure 8-65 Removing the Arm cable cover
To Next Page
