DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 47
8-2-14 Right or Left Side Cover
8-2-14-1 Tools
• Common philips screwdrivers
8-2-14-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-14-3 Removal procedure
1.) Unscrew the four screws on left and right side. Refer to the figure below.
2.) Remove the Right or Left side covers. Refer to the figure below.

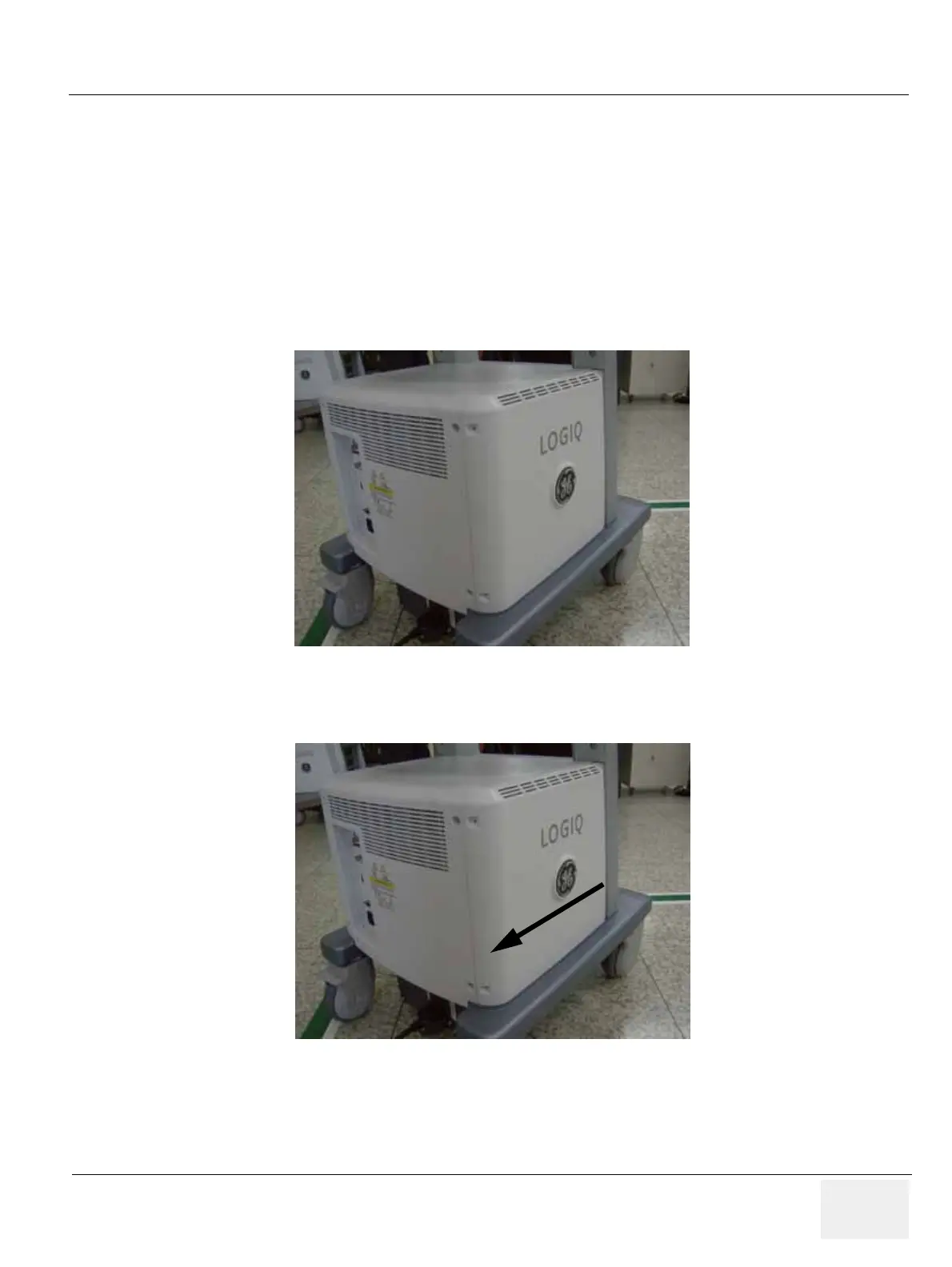

Figure 8-86 2 screw on side cover
Figure 8-87 Open side cover
