GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 46 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-13 Keycap set, Main Keyboard Encoder Knob set
8-2-13-1 Tools
• Common philips screwdrivers
8-2-13-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-13-3 Removal procedure
1.) Remove key caps from the keyboard.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-13-4 Mounting Procedure
Install the new parts in the reverse order of removal.

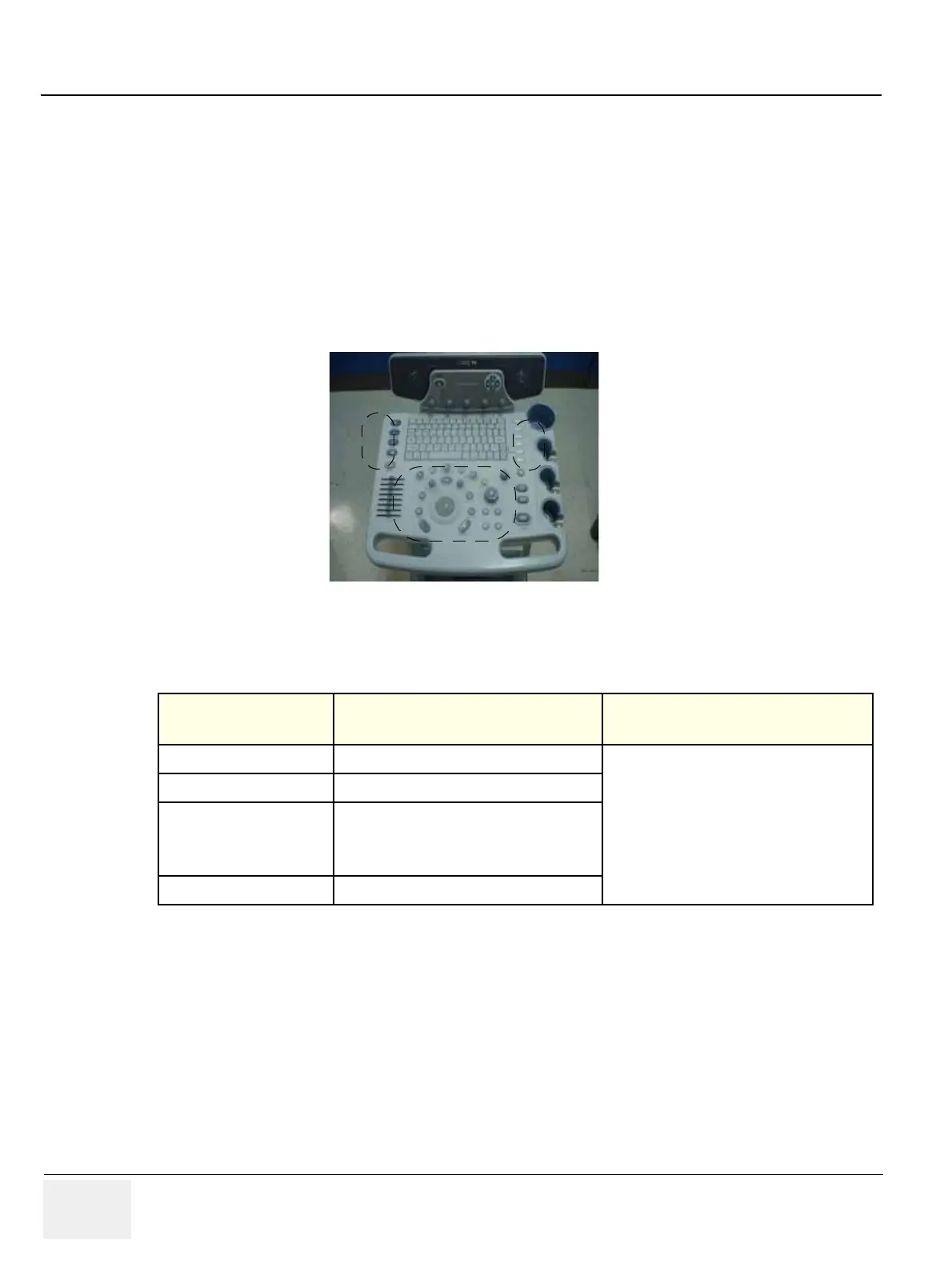

Figure 8-85 Key Caps
Table 8-14 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-13. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-3
TGC key assy/TGC Knob set, Sub keyboard
encoder Knob Set, keycap set, Main keyboard
Encoder Knob set Function Validation
Procedure
Section 10-5-5
Physical Inspection
To Next Page
