DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 78 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-33 Front Caster / Rear Caster
NOTE: Both Front Casters and Rear Casters are swivel type in LOGIQ™ P6/P6 Pro.
8-2-33-1 Tools
• Common philips screwdrivers
• Allen/Unbraco wrench
8-2-33-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-33-3 Removal procedure
1.) Unscrew 8 screws (1A-8A) to remove the front caster. Refer to the figure below.
2.) Unscrew 8 screws (1-8) to remove the rear caster. Refer to the figure below.

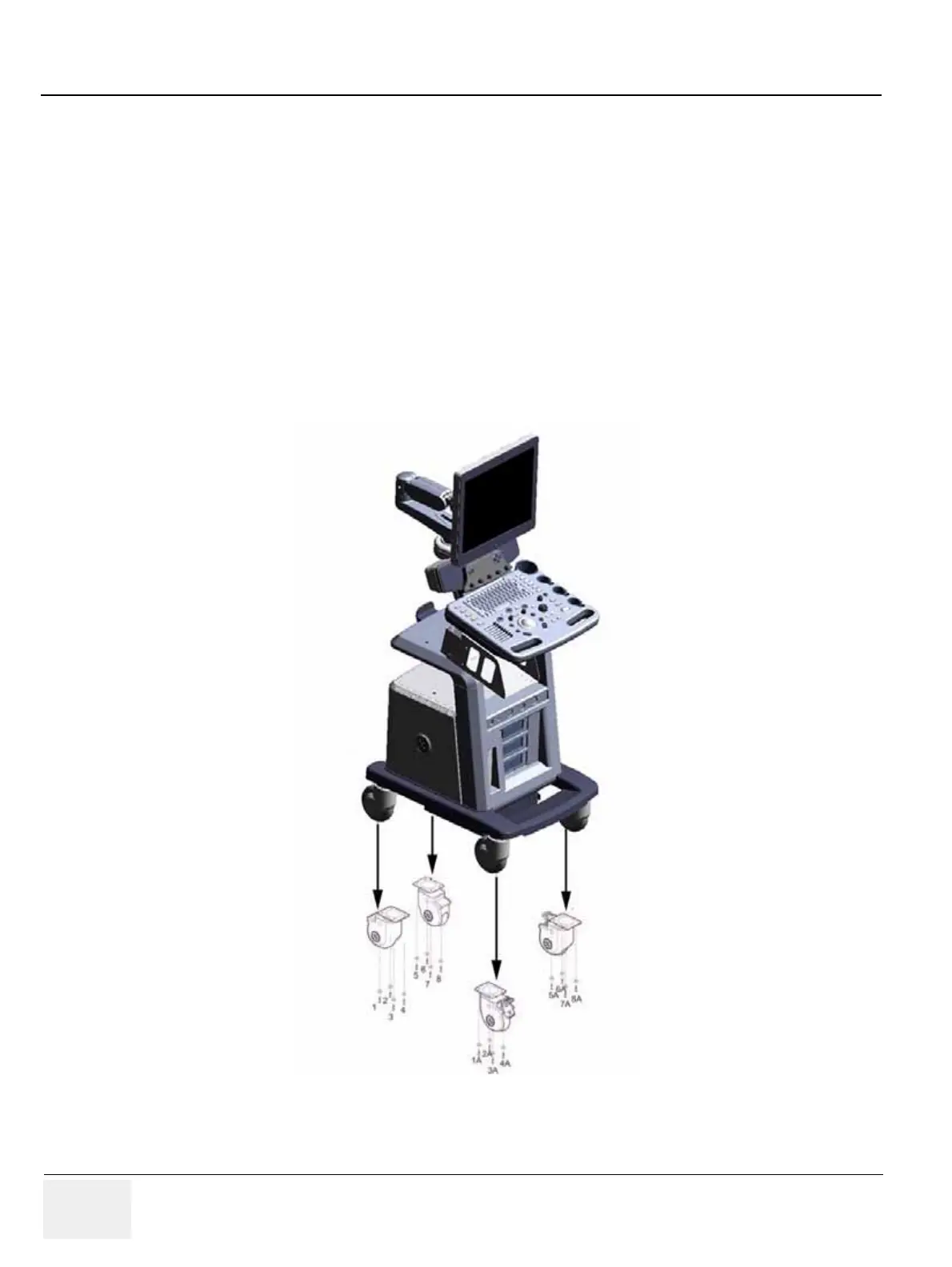

Figure 8-119 Casters
