GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 94 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-44 ACPC II Assy
8-2-44-1 Tools
• Common philips screwdrivers
• Allen/Unbraco wrench
• Stubby screwdriver (Flat tip and Cross tip)
8-2-44-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-44-3 Removal procedure
1.) Remove the AC Input Box Assy. Refer to the 8-2-42 "ARP II Assy 110V/220V" on page 8-90.
2.) Disconnect 5 connectors. Refer to the Figure 8-139.
3.) Unscrew 5 screws to remove the ACPC Assy. Refer to the Figure 8-140.

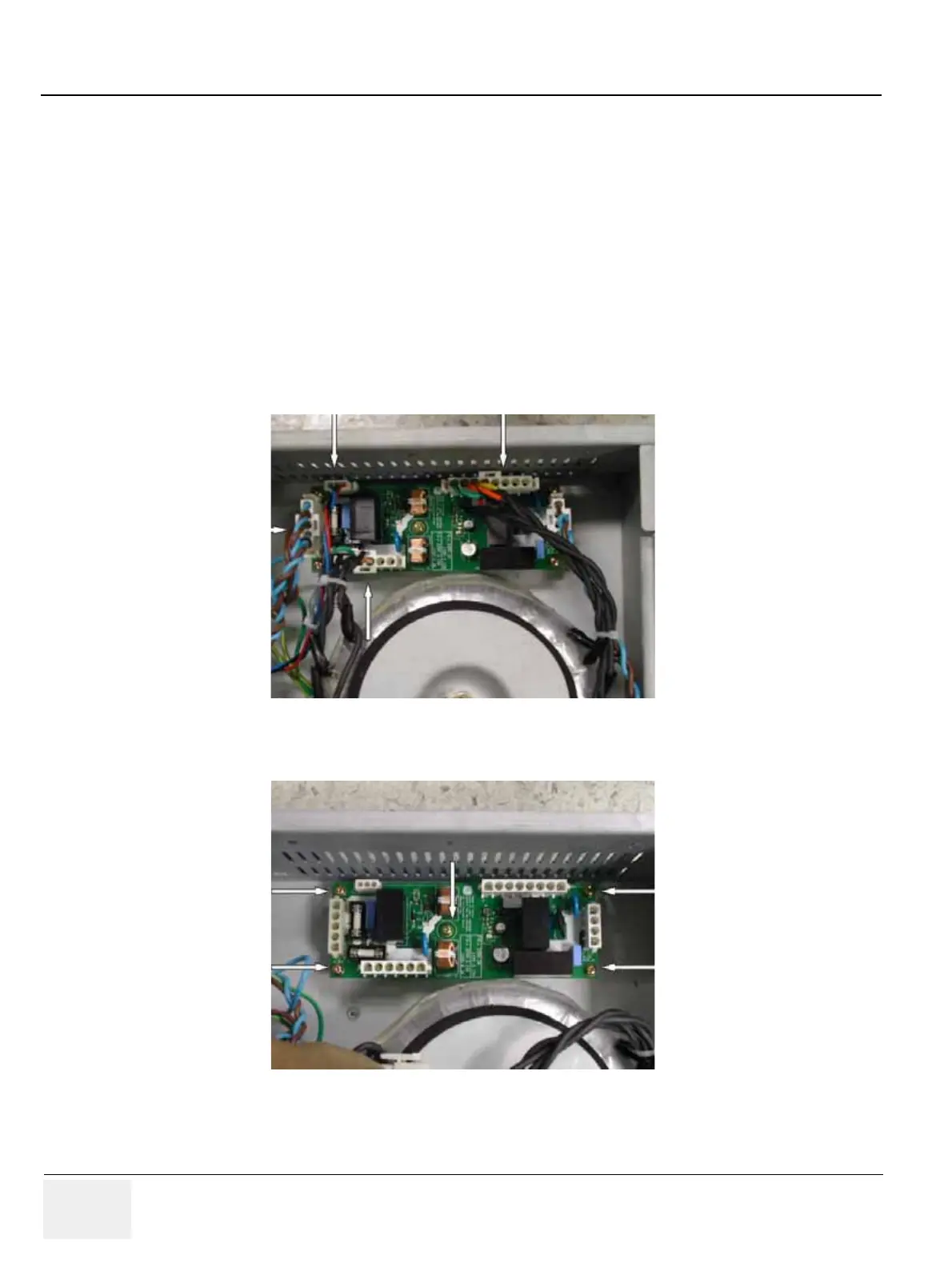

Figure 8-139 ACPC in Transbox
Figure 8-140 Screws of ACPC assy
To Next Page
