GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-4 - Software Installation 8 - 141
8-5-3 Full Backup Procedure (cont’d)
7.) Press “Backup”. Then the below window pops up..
8.) Insert a USB HDD.
NOTE: It might take about 30 seconds for the system to recognize the USB HDD.
9.) Press “Next”.
10.)Verify that USB HDD is in the list.
11.)Select USB HDD for backup when Select Drive window is displayed.

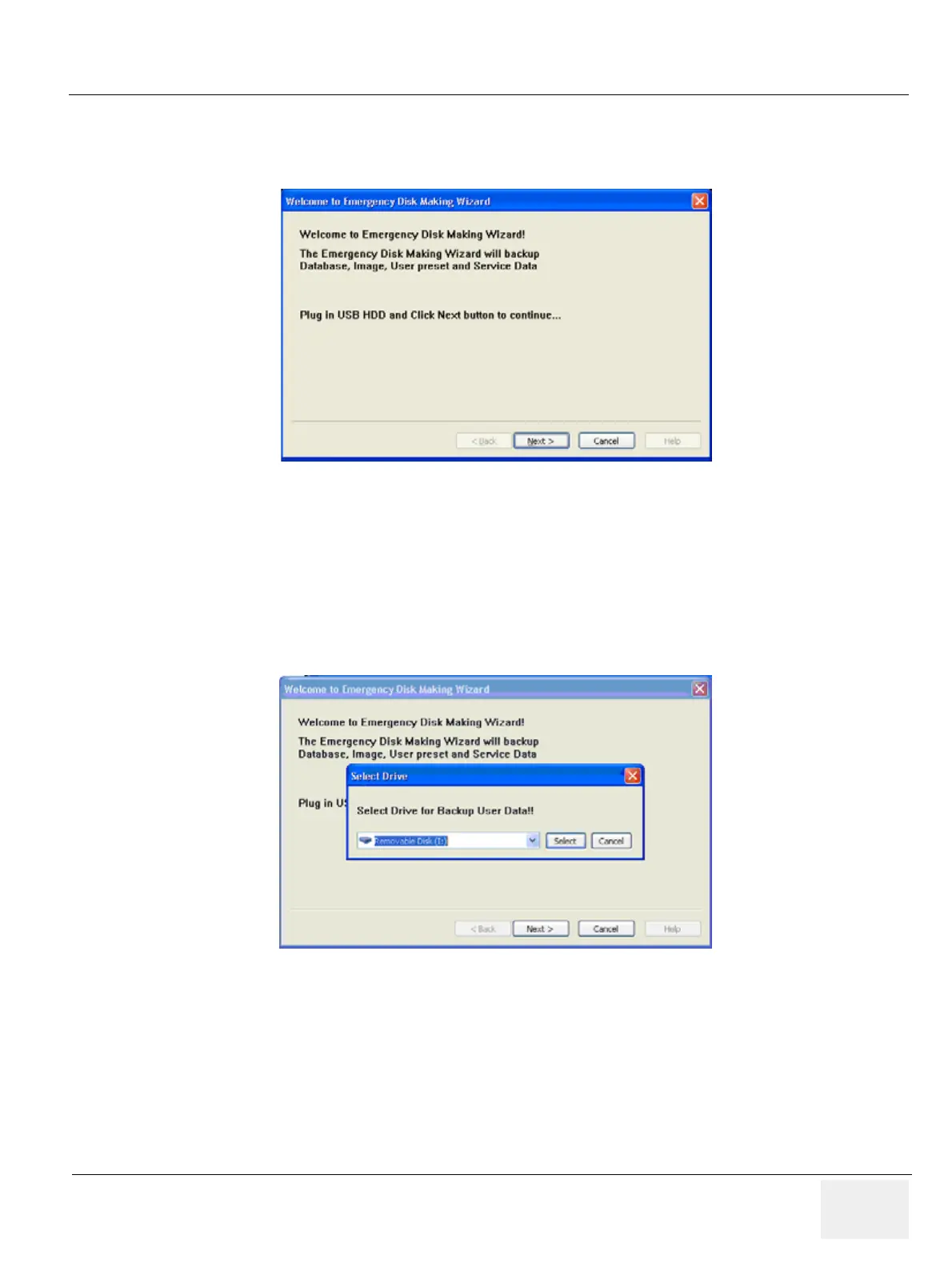

Figure 8-211 Emergency Disk Making Wizard
Figure 8-212 Dirve select
