GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 155
8-7-1 Flexible LCD Arm installation Procedure
8-7-1-1 Tools
• Common pilIips screwdrivers
• Allen/Unbraco wrench
• Stubby screwdriver (Flat tip and Cross tip)
8-7-1-2 Preparations
• Shut down the system and switch off the main breaker.
• Maneuver control console to a suitable position for removing the monitor.
8-7-1-3 Removal procedure
1.) Remove the LCD cable cover. Refer to the figure below.
2.) Unscrew 1 screw (2306565, BH M4x16 WHT) to remove the power cord bracket assembled under
the LCD cable cover. Refer to the figure below.

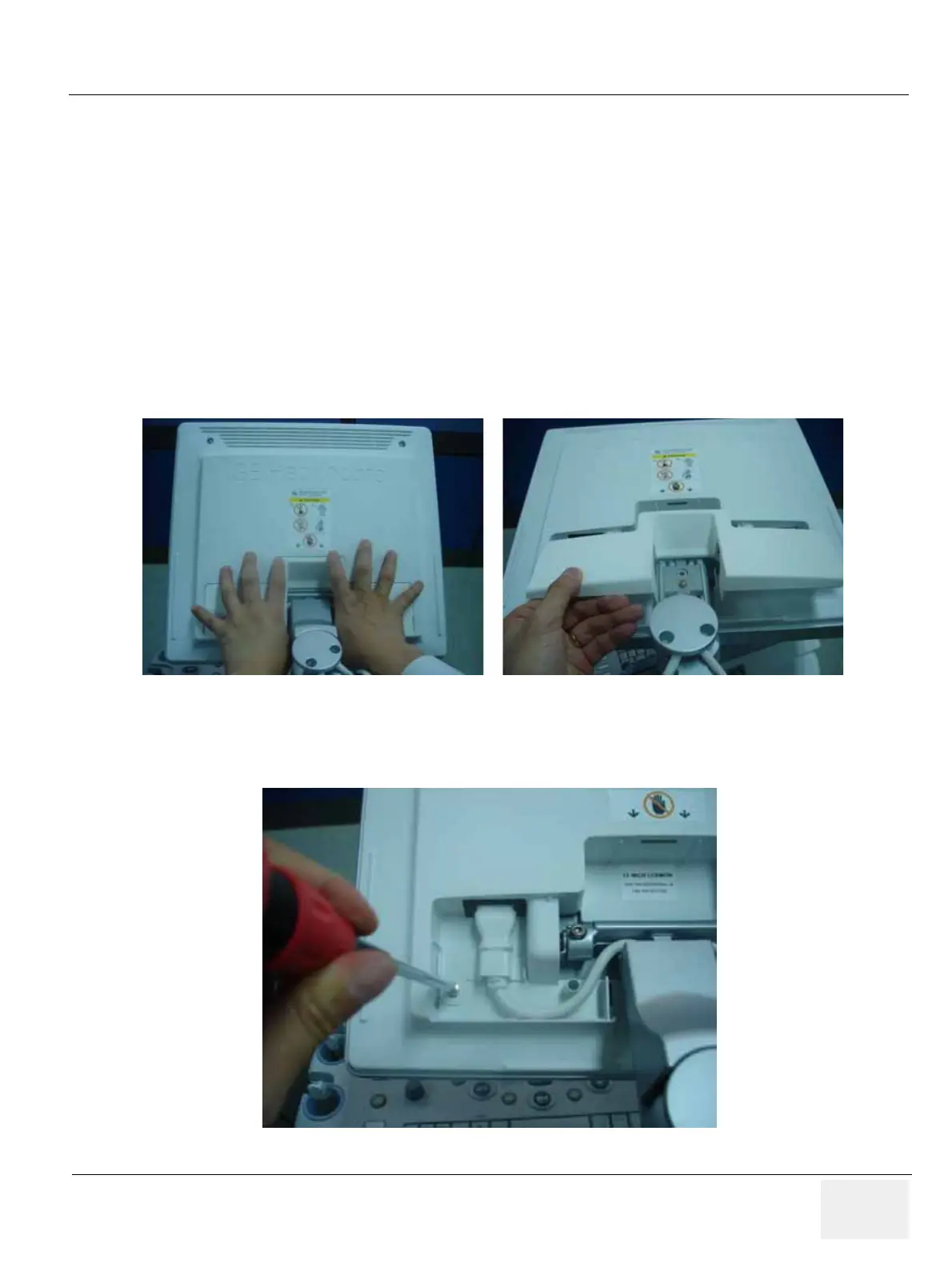

Figure 8-231 Removing the LCD cable cover
Figure 8-232 Removing the power cord bracket
To Next Page
