DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 156 Section 8-7 - Mechanical Option Installation instruction
8-7-1-3 Removal procedure (cont’d)
3.) Disconnect power cable and DVI cable. Refer to the figure below.
4.) Unscrew 1 screw (2329677, TAP M4X16) to remove the Fold cover. Refer to the figure below.
5.) Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Arm cable cover. Refer to the figure
below.

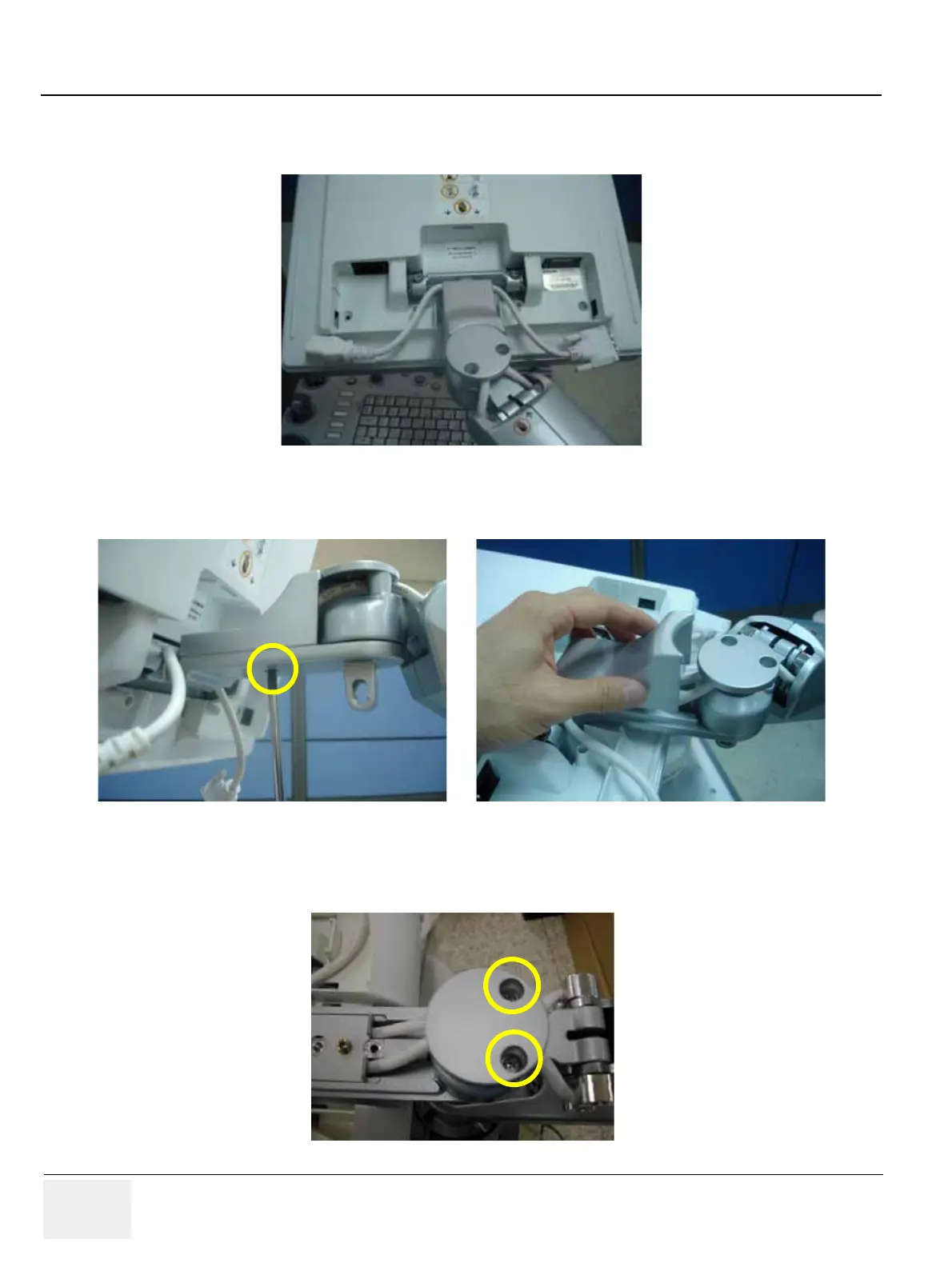

Figure 8-233 Disconnecting power cable and DVI cable
Figure 8-234 Removing the Fold cover
Figure 8-235 Removing the Arm cable cover
To Next Page
