8 - 168 Section 8-7 - Mechanical Option Installation instruction
8-7-1-4 Assembly procedure (cont’d)

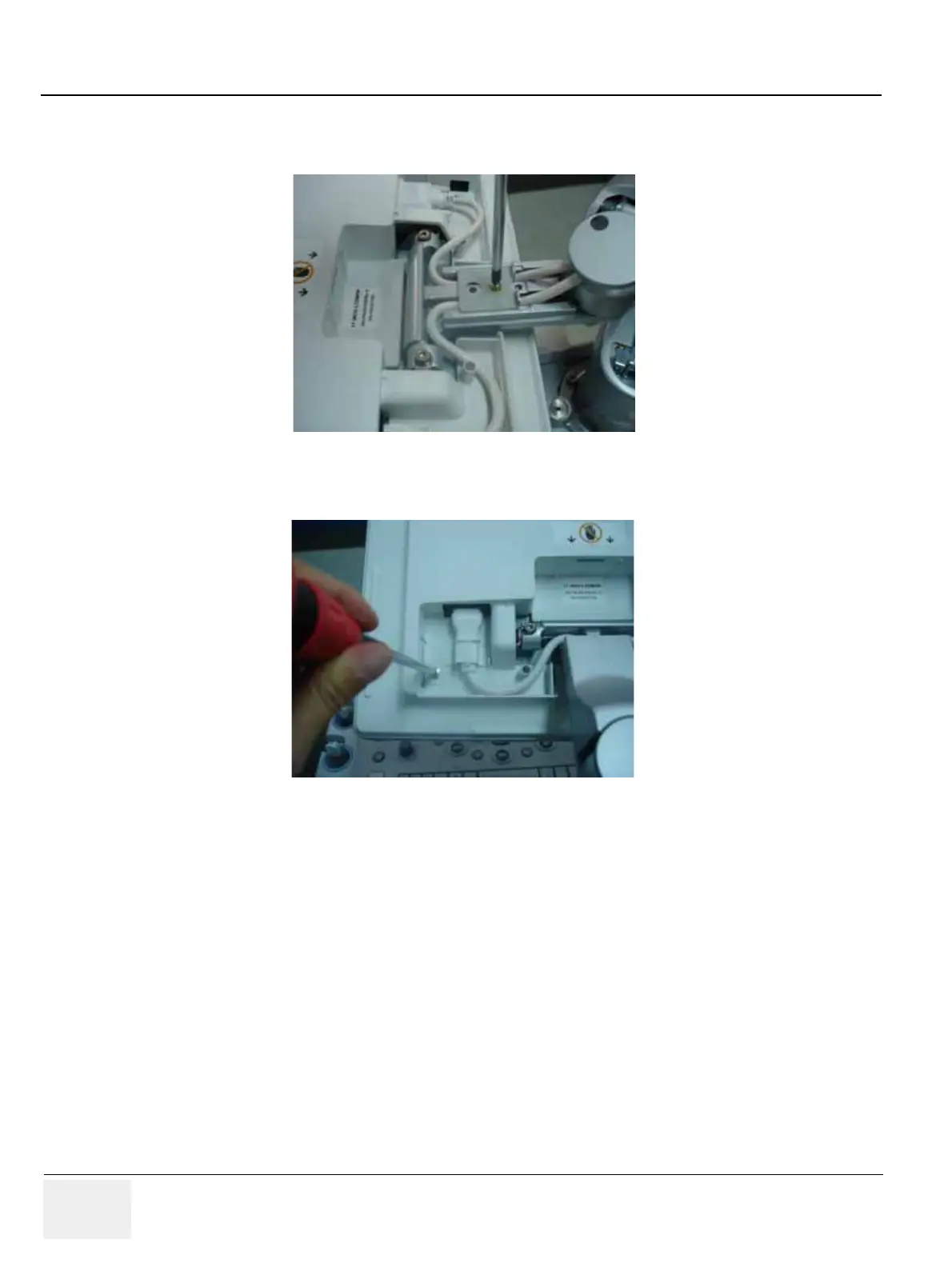

16.) Place the cables like the figure below.
17.) Screw 1 screw (2306565, BH M4X16 WHT) to fix the Power cable. Refer to the figure below.
Figure 8-265 Placing the cables
Figure 8-266 Assembling the power cord bracket
To Next Page
