GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 167
8-7-1-4 Assembly procedure (cont’d)
13.) Place the cables inside the slot and connect power cable and DVI cable. Refer to the Figure below.
14.) Assemble the Cable bracket with 1 Screw (2159625, PH M4X8 W/SP)
15.) Screw 2 screws (2159634, BH M4X10 WHT) to assemble the Arm Cable Cover. Refer to the figure
below.

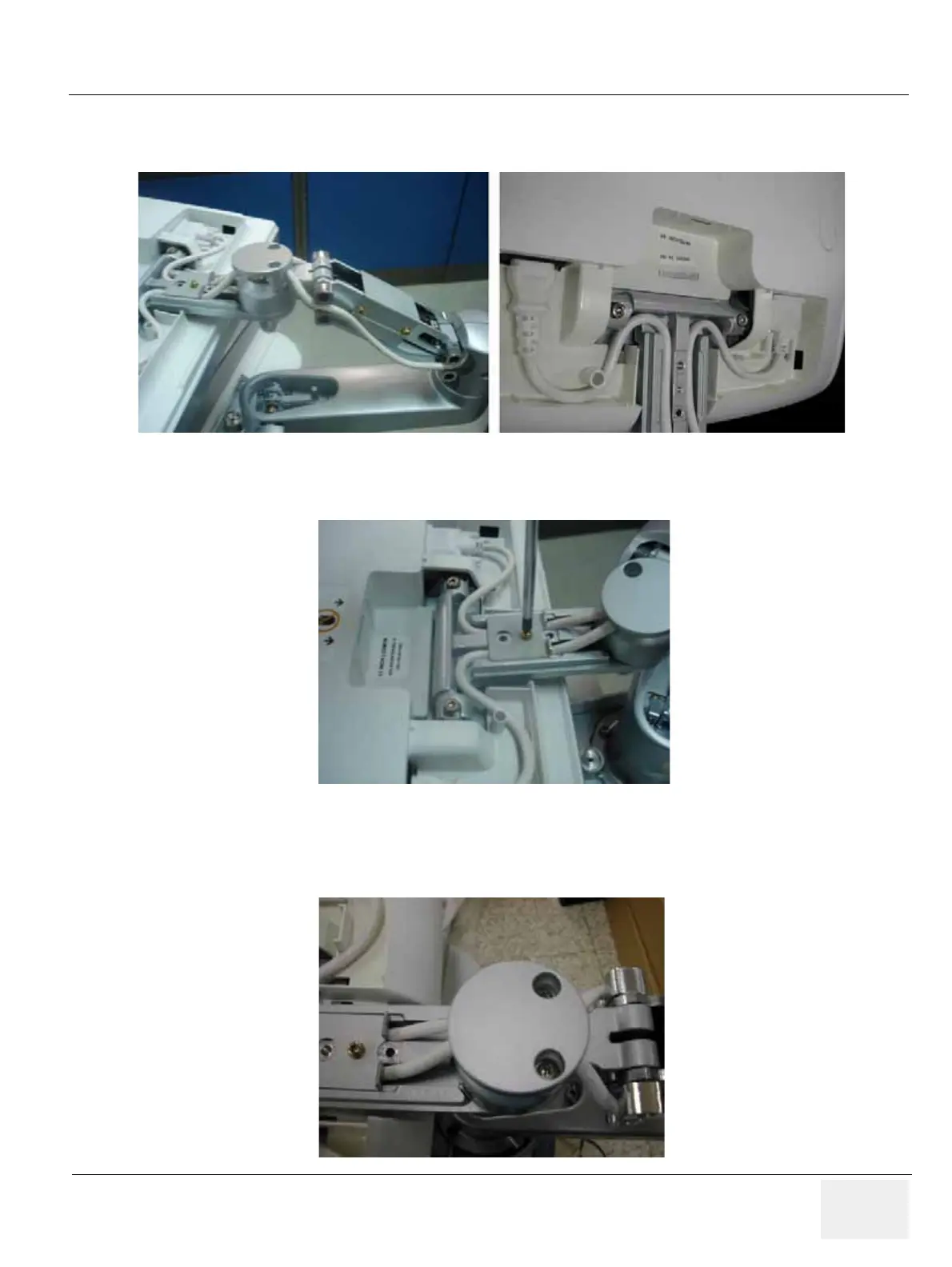

Figure 8-262 Placing the Cables
Figure 8-263 Assembling the Cable bracket
Figure 8-264 Assembling the Arm Cable Cover
