8-7-1-4 Assembly procedure (cont’d)
19.) Screw 3 screws (2159634, BH M4x10 WHT) after placing the neck front cover and neck Rear cover.
Refer to the figure below.
20.) Screw 1 screw (2159625, PH M4X8 W/SP) to assemble the Lock Knob.

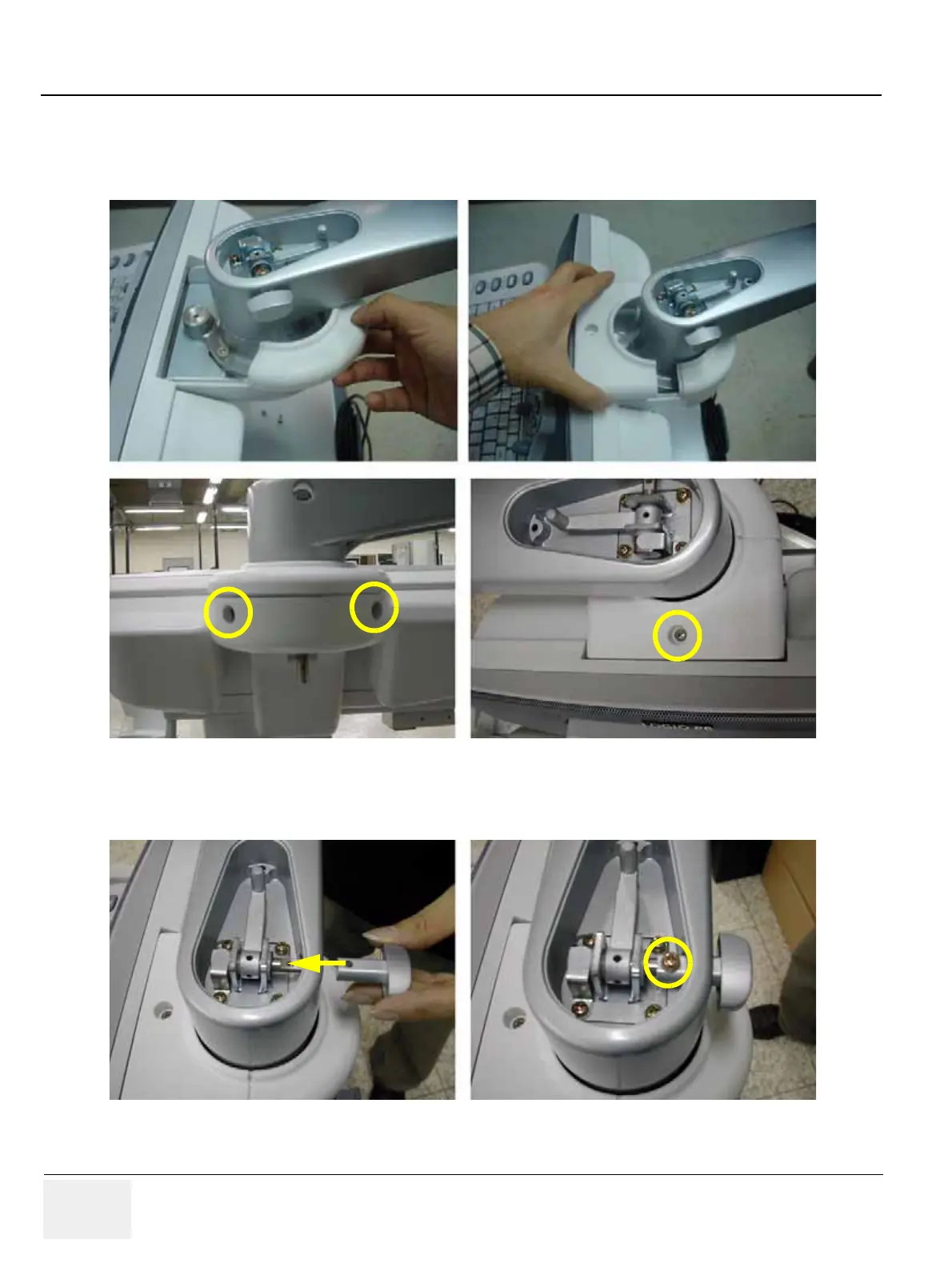

Figure 8-268 Assembling the neck front cover and the neck rear cover
Figure 8-269 Assembling the Lock Knob
