GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 180 Section 8-7 - Mechanical Option Installation instruction
8-7-6 BW Printer Fixture Keyboard installation (cont’d)
6.) Connect the Power Cable and USB Cable from the printer to the system and tie the cable properly.
Refer to the figure below.
7.) Install the BW Printer hide bracket to the rear side of the printer and screw 2 screws(5178673, FH
M4x6 WHT) on each side to fix it. Refer to the figure below.

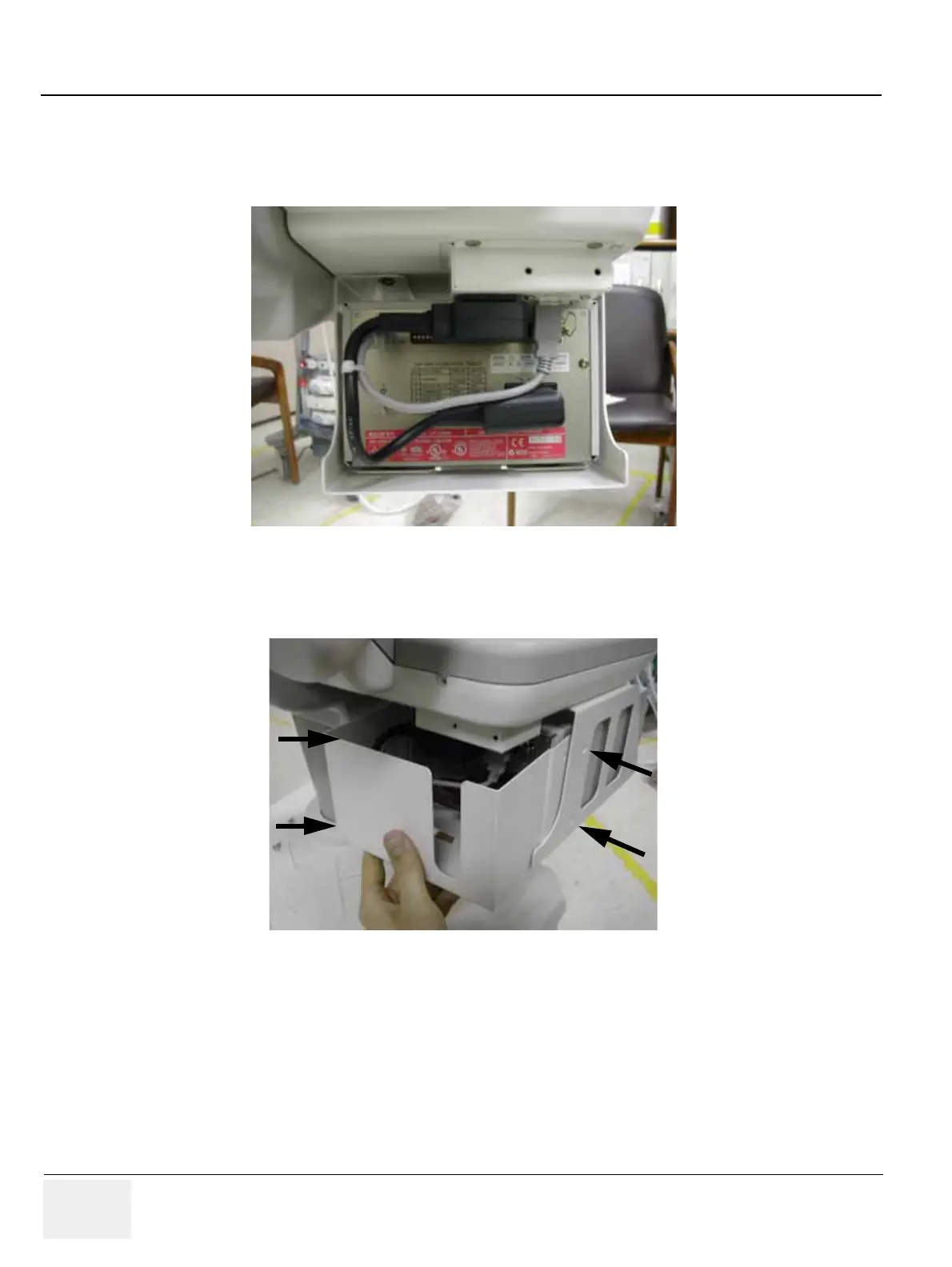

Figure 8-288 BW Printer Fixture Keyboard installation
Figure 8-289 BW Printer Fixture Keyboard installation
To Next Page
