GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 186 Section 8-7 - Mechanical Option Installation instruction
8-7-9 Printer VCR DVD Fixture Top installation - UP23MD Printer
1.) This section describes the installation procedure of color printer fixture for UP-23MD printer.
2.) Unscrew 2 existing screws from the top cover. Refer to the Figure 8-300.
3.) Install Fixture Top bracket on the top cover by screwing 2 screws. Refer to the Figure 8-301.

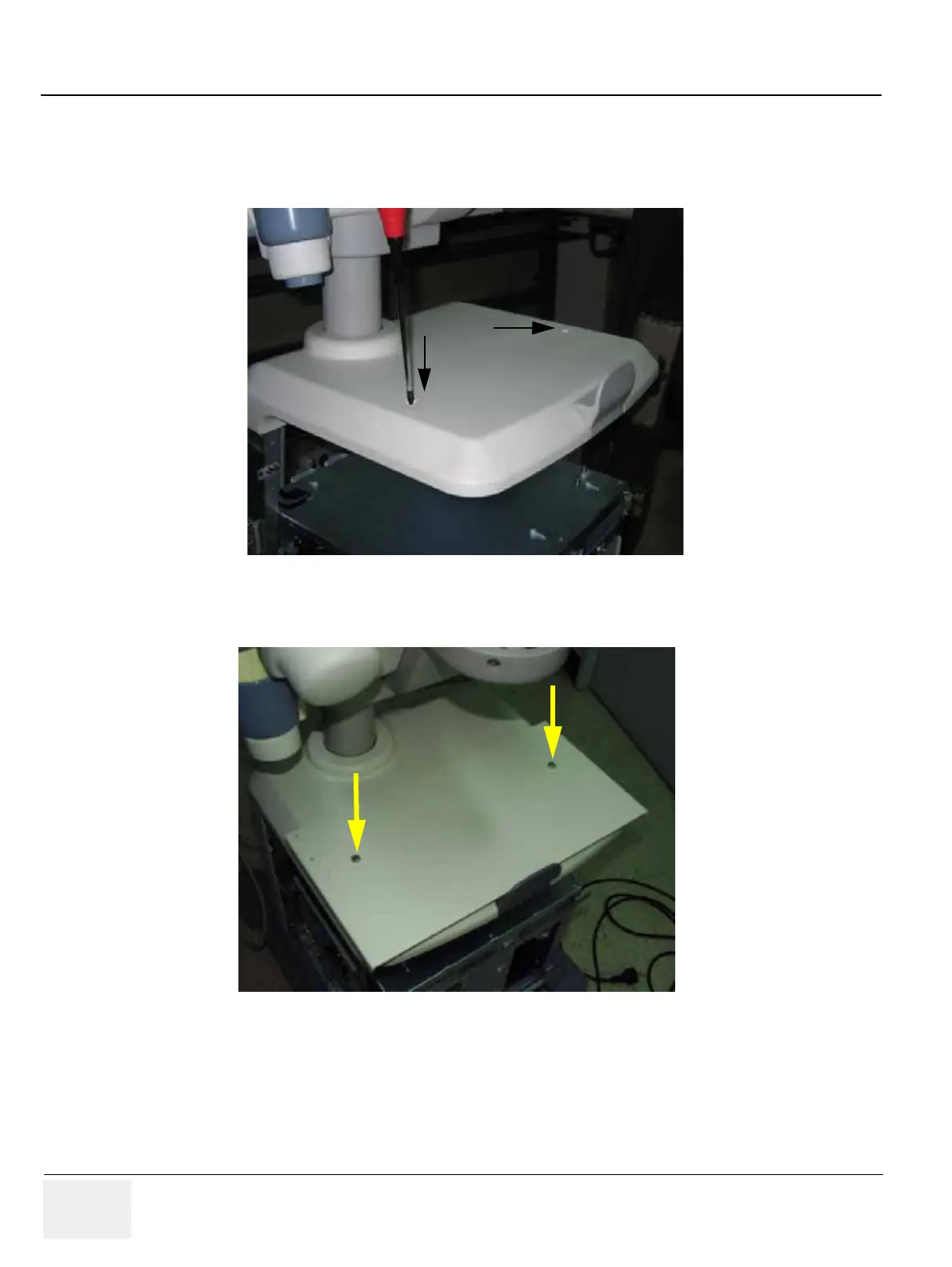

Figure 8-300 Printer VCR DVD Fixture installation top
Figure 8-301 Printer VCR DVD Fixture installation top
