GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 189
8-7-10 Printer VCR DVD fixture Top installation - CP900 Printer
1.) This section describes the installation procedure of Color Printer fixture for CP-900 printer.
2.) Unscrew 2 existing screws from the top cover. Refer to the Figure 8-305.
3.) Install Fixture Top bracket on the top cover by screwing 2 screws. Refer to the Figure 8-306.

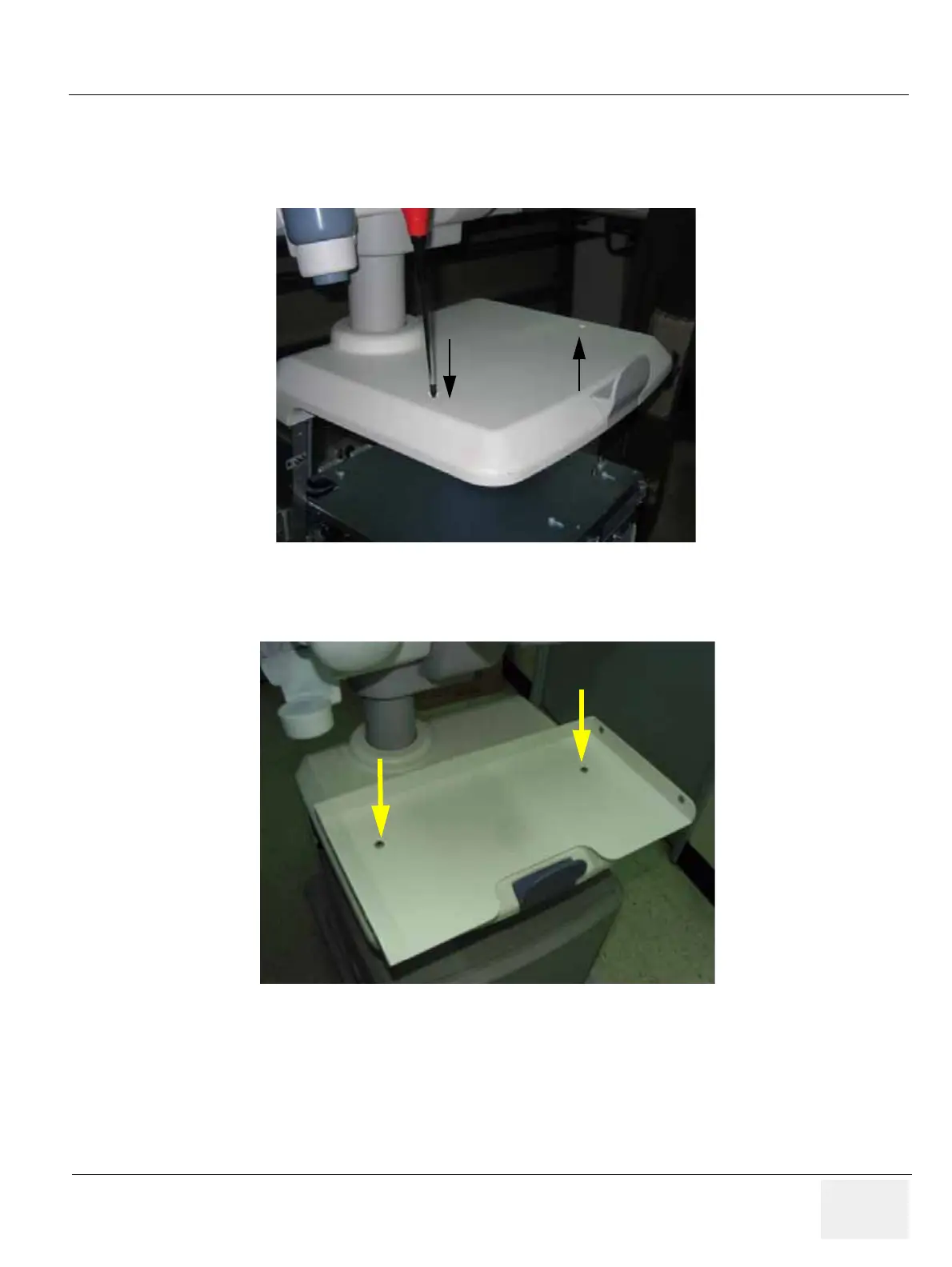

Figure 8-305 Printer VCR DVD Fixture Top installation
Figure 8-306 Printer VCR DVD Fixture Top installation
