GE P54C - AR External Trip Initiation Logic Diagram; Figure 66: Autoreclose Initiation by External Trip or Evolving Conditions (Module 13)

To Next Page

To Previous Page

5.7.3 AR EXTERNAL TRIP INITIATION LOGIC DIAGRAM

V03317

AR Disabled

Init AR

Trip Output A

Trip Output B

Trip Output C

External Trip A

External Trip B

External Trip C

External Trip3 ph

TAR2/3PH

TARANY

TARA

TARB

TARC

RESPRMEM

Trip AR MemA

Init AR

≥

Trip AR MemB

Trip AR MemC

ARIP

TARANY

0.2

0.01

0.1

Trip AR MemA

Trip AR MemB

Trip AR MemC

TMEMANY

TMEM1Ph

TMEM2/3Ph

TMEM3Ph

≥

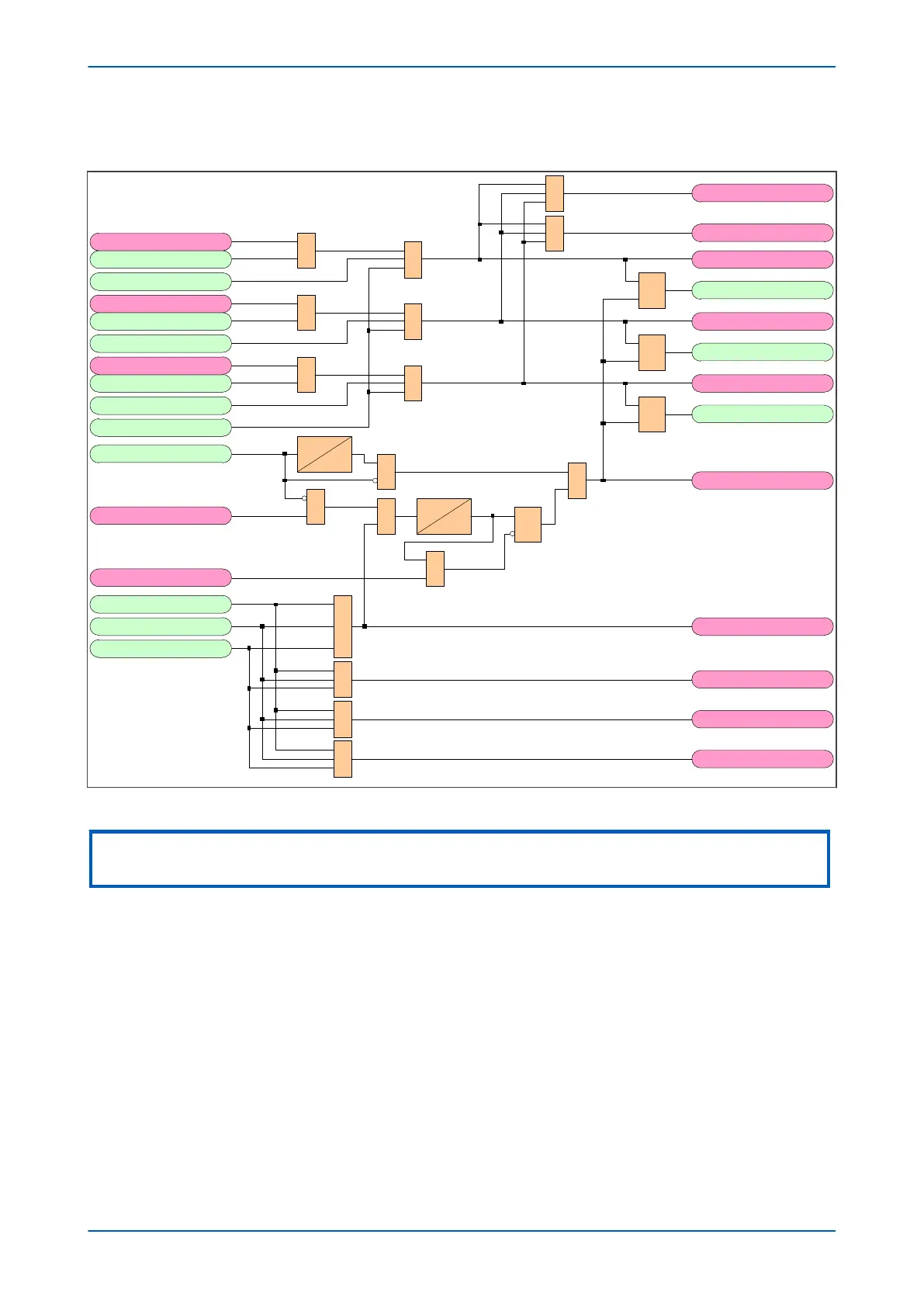

Figure 66: Autoreclose initiation by external trip or evolving conditions (Module 13)

Not

The signals must be mapped as shown in the default PSL scheme.

P54A/B/C/E Chapter 7 - Autoreclose

P54xMED-TM-EN-1 155
