5.11.1 DEAD TIME START ENABLE LOGIC DIAGRAM

V03337

DT Start by Prot

Protection Reset

Protection Op

Disable

DTOK All

AR Start

OKTimeSP

OK Time 3P

ARIP

AR Initiation

0.02

Dead Line

DeadLineLockout

3PDTStart WhenLD

Enabled

Disabled

Protection Reset

DT Start by Prot

Disable

AR 1pole in prog

Enabled

DTStart by CB Op

Disabled

CB1OP1 P

CB Open 3 ph

DTOK CB 1P

DTOK CB 3P

Dead Line Time

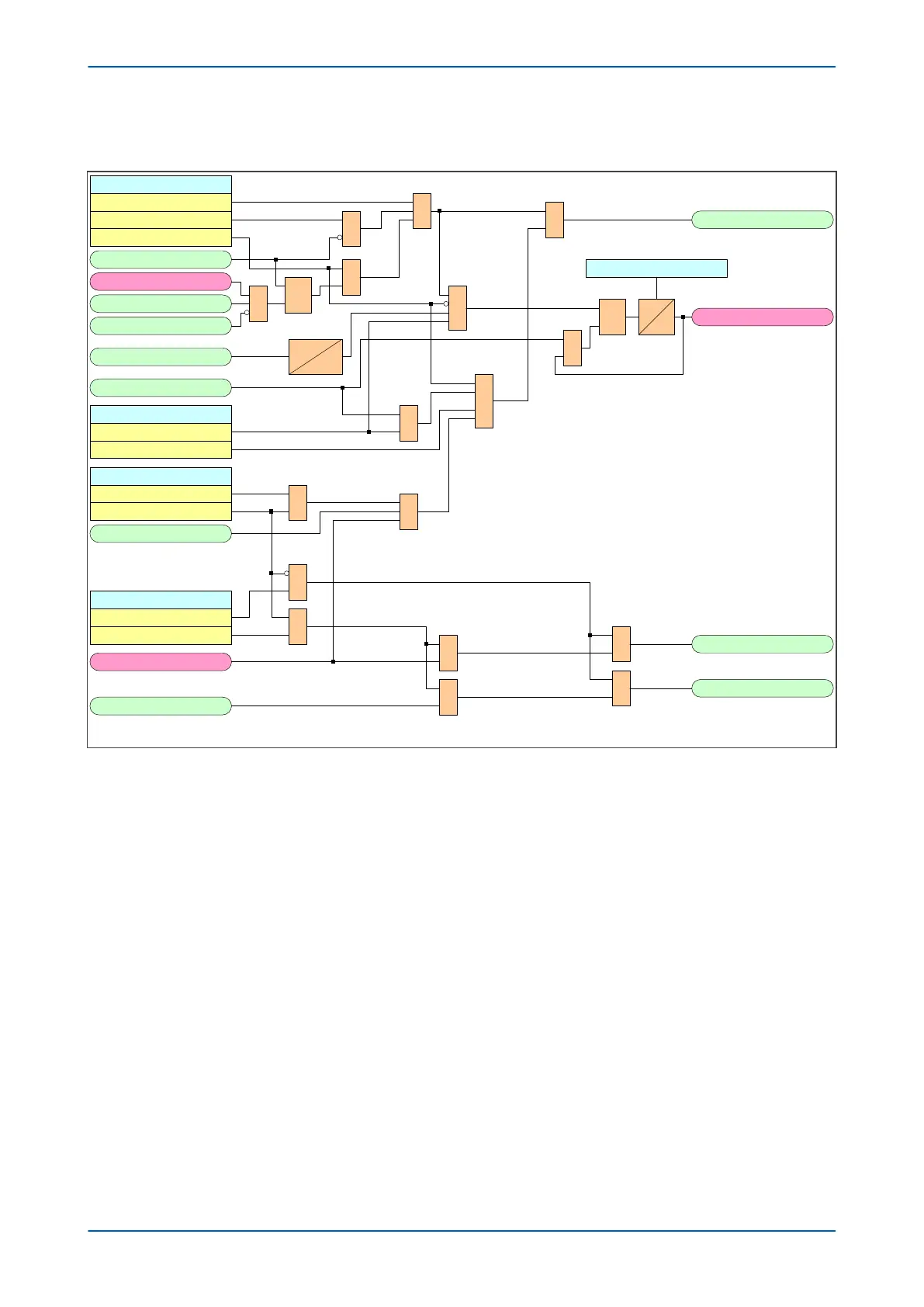

Figure 73: Dead time Start Enable logic diagram (Module 22)
