9.2 VOLTAGE MONITOR FOR CB CLOSURE

V01257

VAN

Select

VBN

VCN

VAB

VBC

VCA

VBus

Live Line

Dead Line

Live Bus

Dead Bus

System Checks

Enabled

Voltage Monitors

& Live Line

Dead line

Dead Bus

Live Bus

Inhibit LB

Inhibit DB

Inhibit LL

Inhibit DL

MCB/VTS

MCB/VTS CB CS

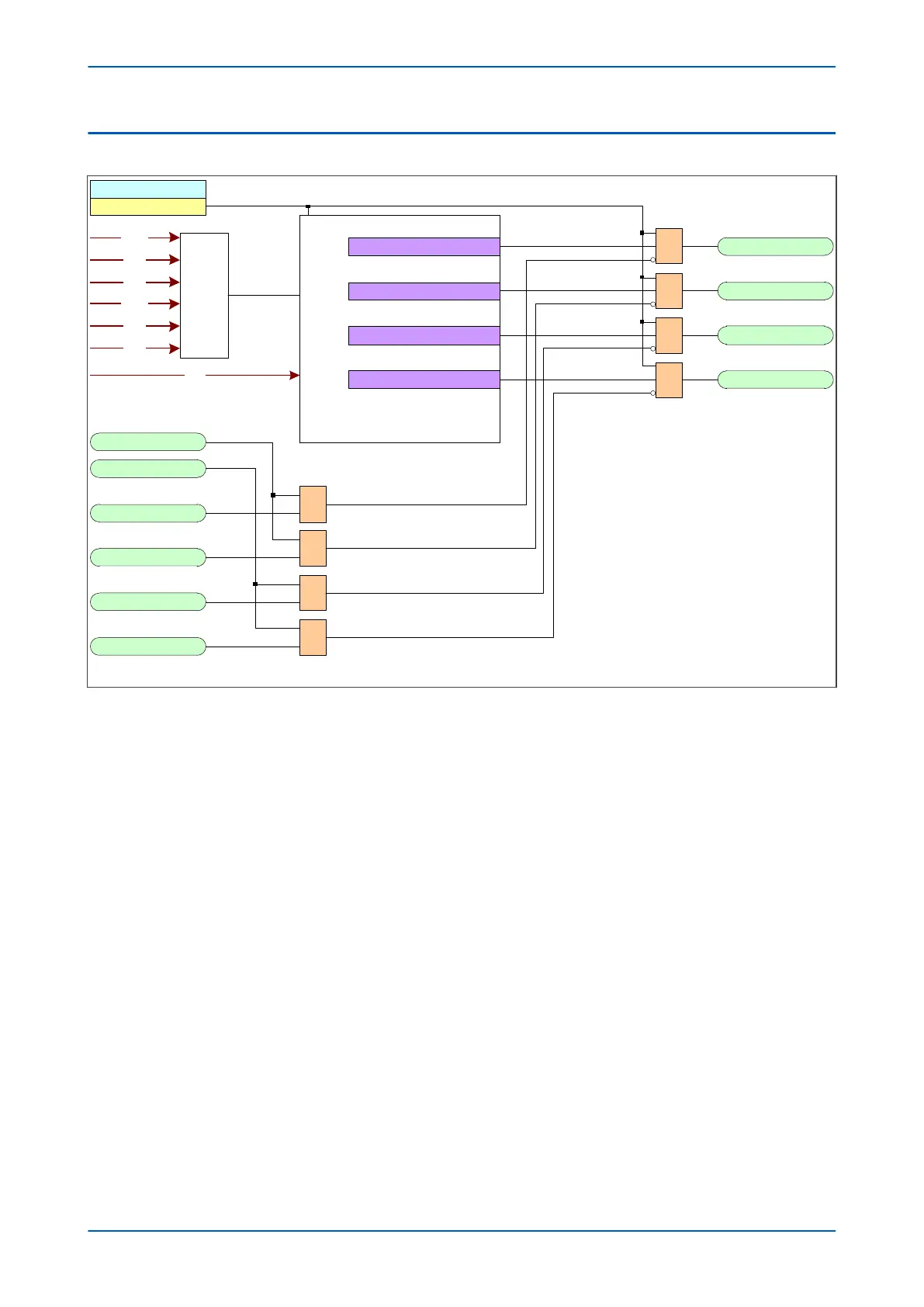

Figure 136: Voltage Monitor for CB Closure (Module 59)

Chapter 12 - Monitoring and Control P54A/B/C/E

270 P54xMED-TM-EN-1
