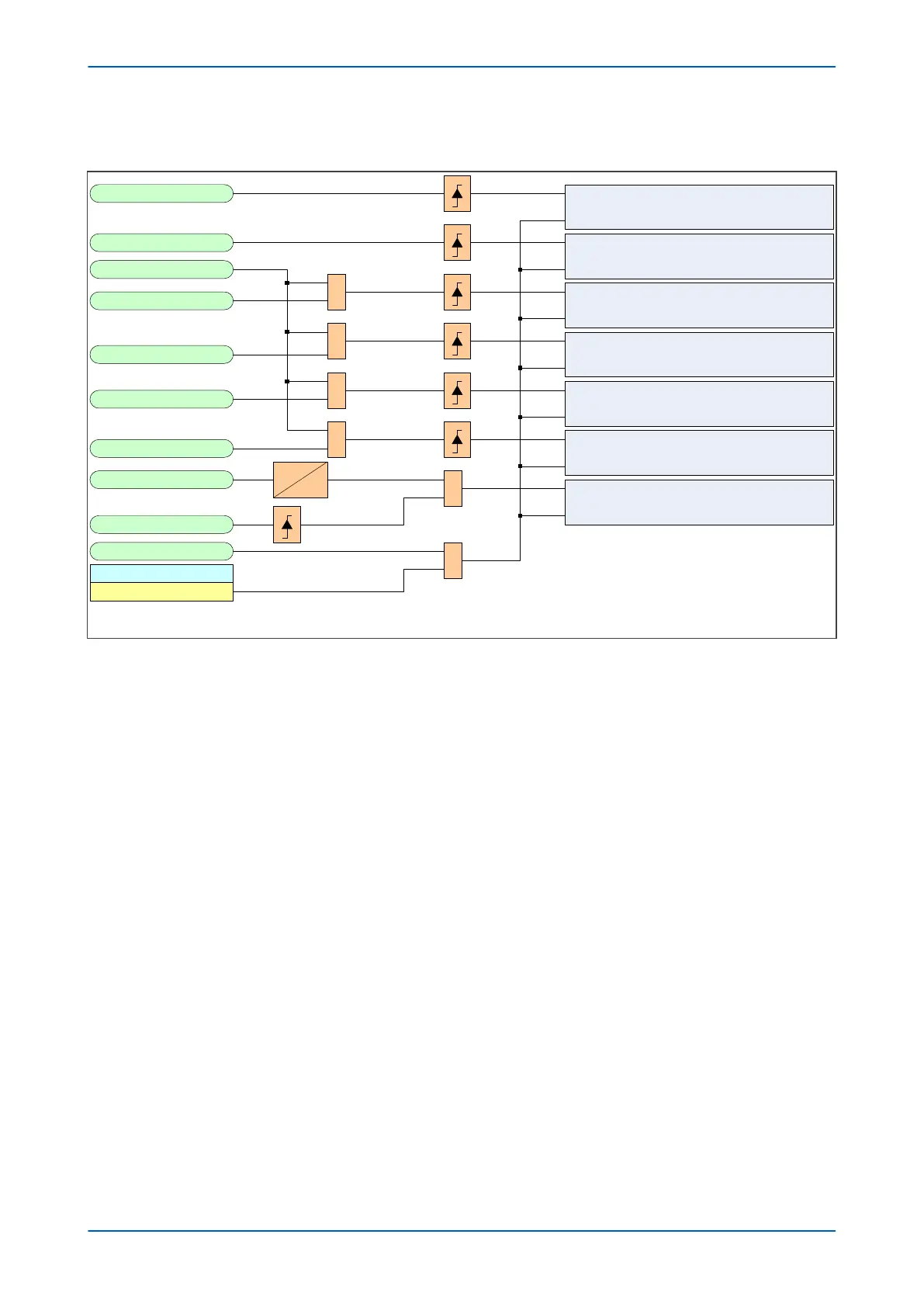

5.15.1 AUTORECLOSE SHOT COUNTERS LOGIC DIAGRAM

V03366

Seq Counter = 1

Set CB Close

CB Succ 1P AR

CB Succ 3P AR

Seq Counter = 2

Seq Counter = 3

Seq Counter = 4

CB Total Shots Counter

Increment

Reset

CB Successful SPAR Shot 1 Counter

Increment

Reset

CB Successful 3PAR Shot 1 Counter

Increment

Reset

CB Successful 3PAR Shot 2 Counter

Increment

Reset

CB Successful 3PAR Shot 3 Counter

Increment

Reset

CB Successful 3PAR Shot 4 Counter

Increment

Reset

CB Failed AR Counter

Increment

Reset

Reset CB Shots

Yes

0.02

CB Arip

A/R Lockout

Ext Rst CB Shots

Figure 82: Autoreclose Shot Counters logic diagram (Module 41)

P54A/B/C/E Chapter 7 - Autoreclose

P54xMED-TM-EN-1 167
