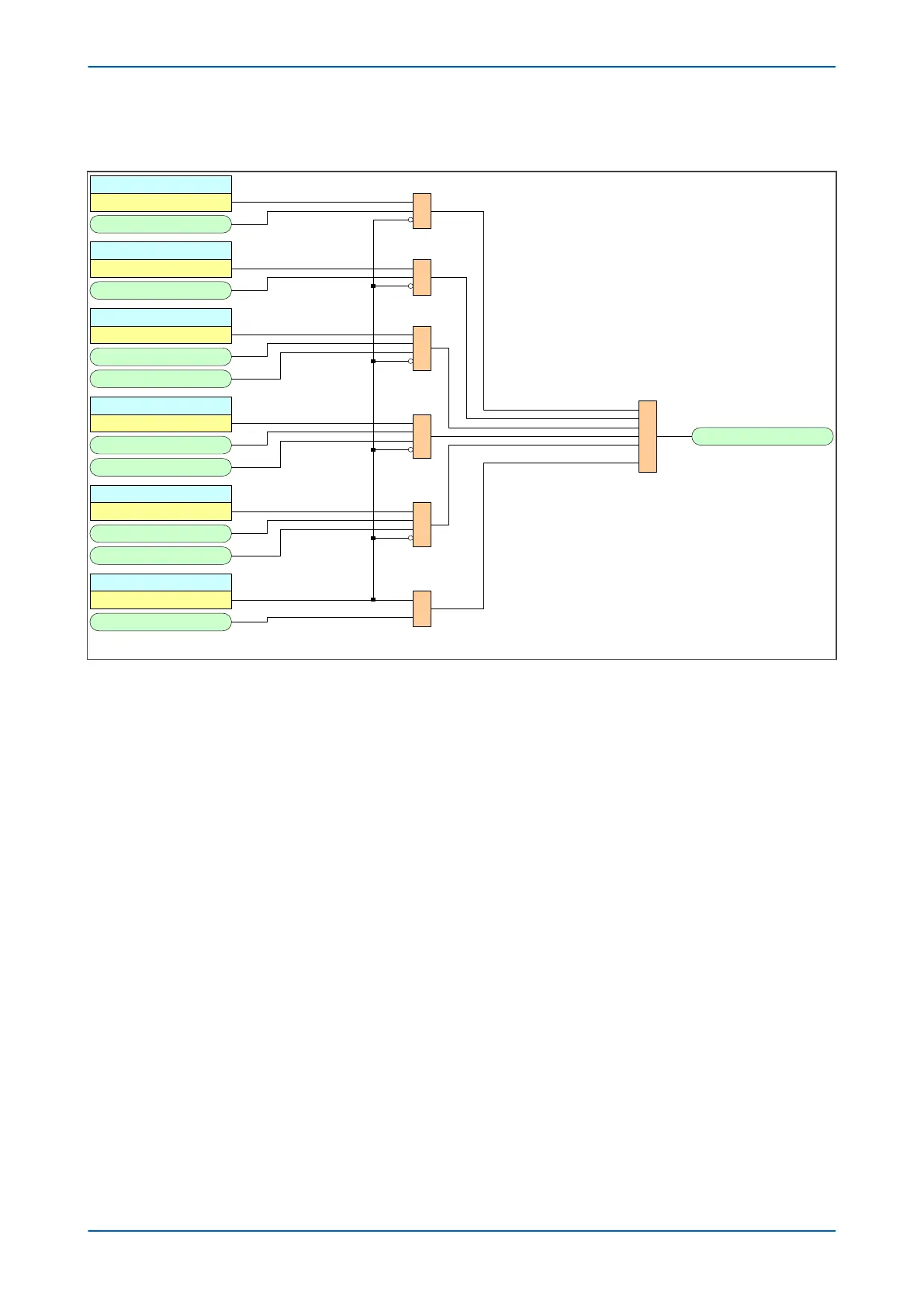

5.23.2 CB MANUAL CLOSE SYSTEM CHECK LOGIC DIAGRAM

V03374

CBM SC CS1

Enabled

CBM SC CS2

Enabled

Check Sync 1 OK

CBM SC DLLB

Enabled

CBM SC LLDB

Enabled

CBM SC required

Disabled

Check Sync 2 OK

Dead Line

Live Bus

Live Line

CB Man SCOK

CBM SC DLDB

Enabled

Dead Bus

Dead Line

Dead Bus

Ext CS OK

Note: If the DDB signal CB Ext CS OK is not mapped in PSL , it

defaults to High .

Figure 92: CB Manual Close System Check Logic Diagram (Module 51)
