IED

V00680

Phase A

Phase B

Phase C

Neutral

Phase A

Phase B

Phase C

IED

Neutral

Phase A

Phase B

Phase C

Connecting IED to star winding for High

Impedance REF

Connecting IED to delta winding for High

Impedance REF

STAB

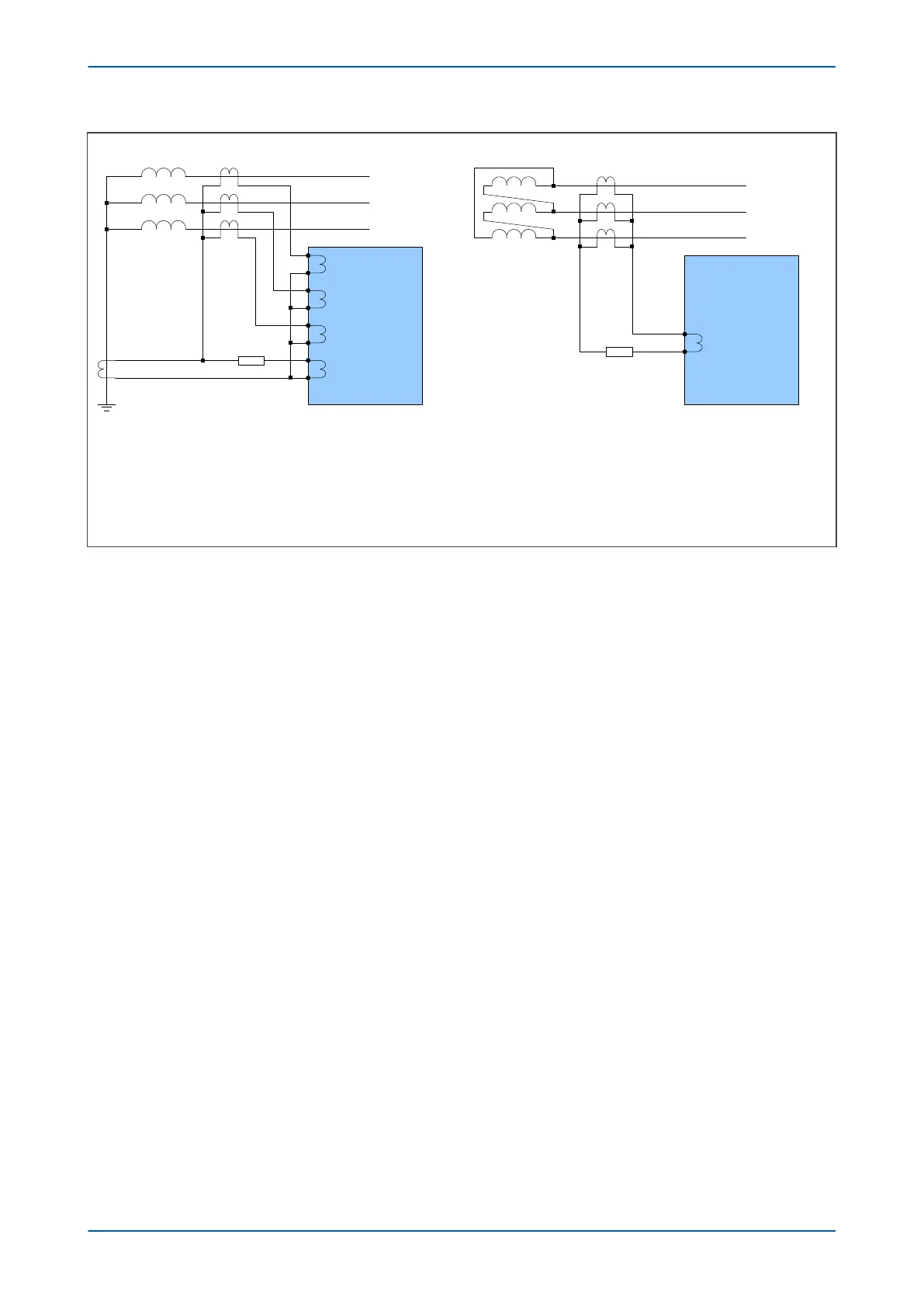

Figure 108: High Impedance REF Connection

P54A/B/C/E Chapter 9 - Current Protection Functions

P54xMED-TM-EN-1 213
