5.7.4 PROTECTION REOPERATION AND EVOLVING FAULT LOGIC DIAGRAM

V03331

TARANY

TMEMANY

Prot ReOp

LastShot

Set CB1 CL

1P DTime

Seq Counter = 1

A/R Lockout

CB Closed 3 ph

CB ARIP

Prot ReOp

Evolve Lock

Evolve 3Ph

CB Failed AR

0.02

Discrim Time

0.02

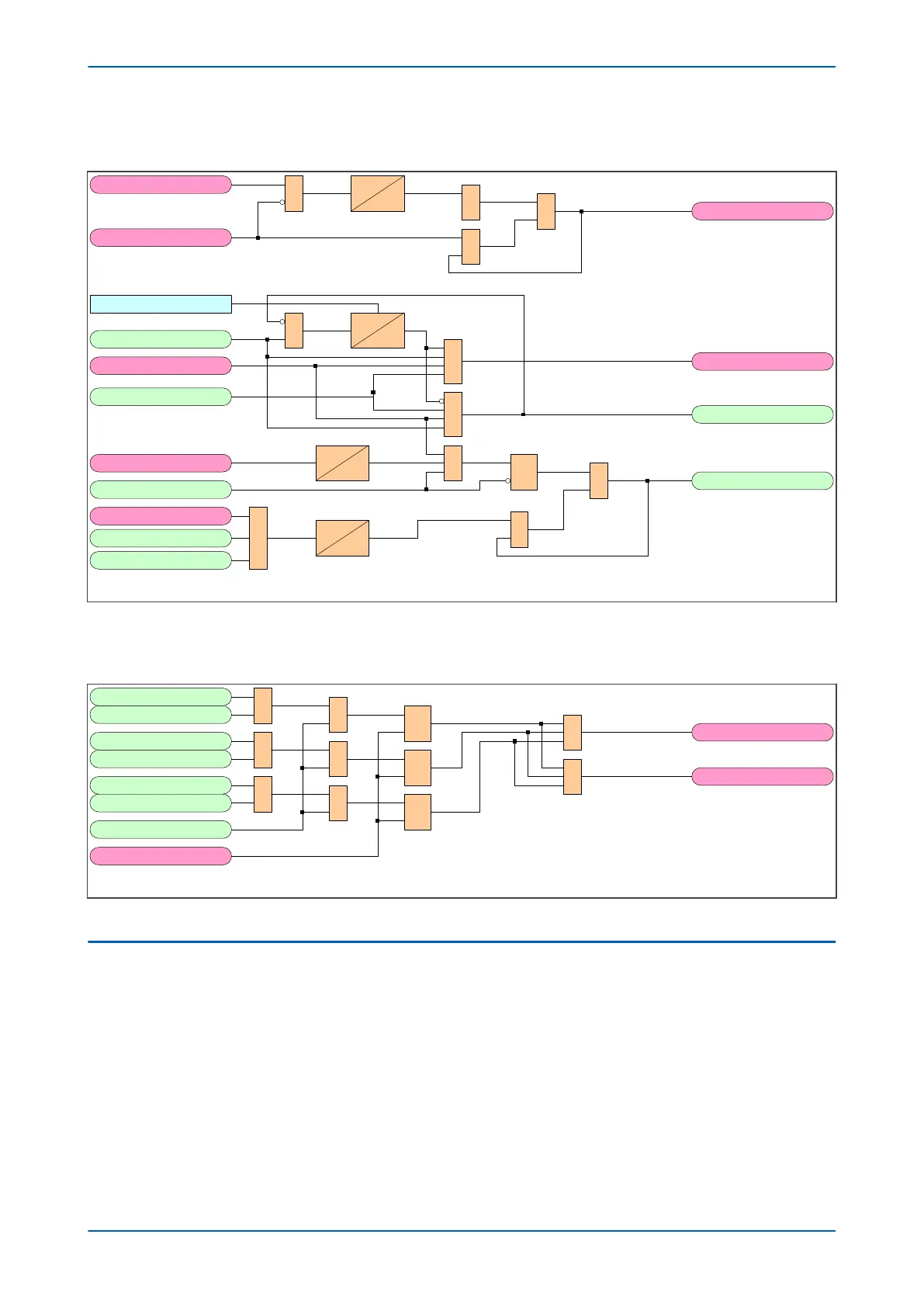

Figure 67: Protection Reoperation and Evolving Fault logic diagram (Module 20)

5.7.5 FAULT MEMORY LOGIC DIAGRAM

V03320

RESPRMEM

Trip Inputs A

Ext Fault APh

FLTMEM 2P

FLTMEM 3P

AR Start

Trip Inputs B

Trip Inputs C

Ext Fault BPh

Ext Fault CPh

Figure 68: Fault Memory logic diagram (Module 15)

5.8 AUTORECLOSE IN PROGRESS

The AR In Progress module produces various signals to indicate to other modules and functions that an

Autor

eclose operation is currently in progress.
