32 SEER™ 1000 2067634-077 Revision B

ECG recordings are transferred to the evaluation workstation using a spe-

cial USB cable.

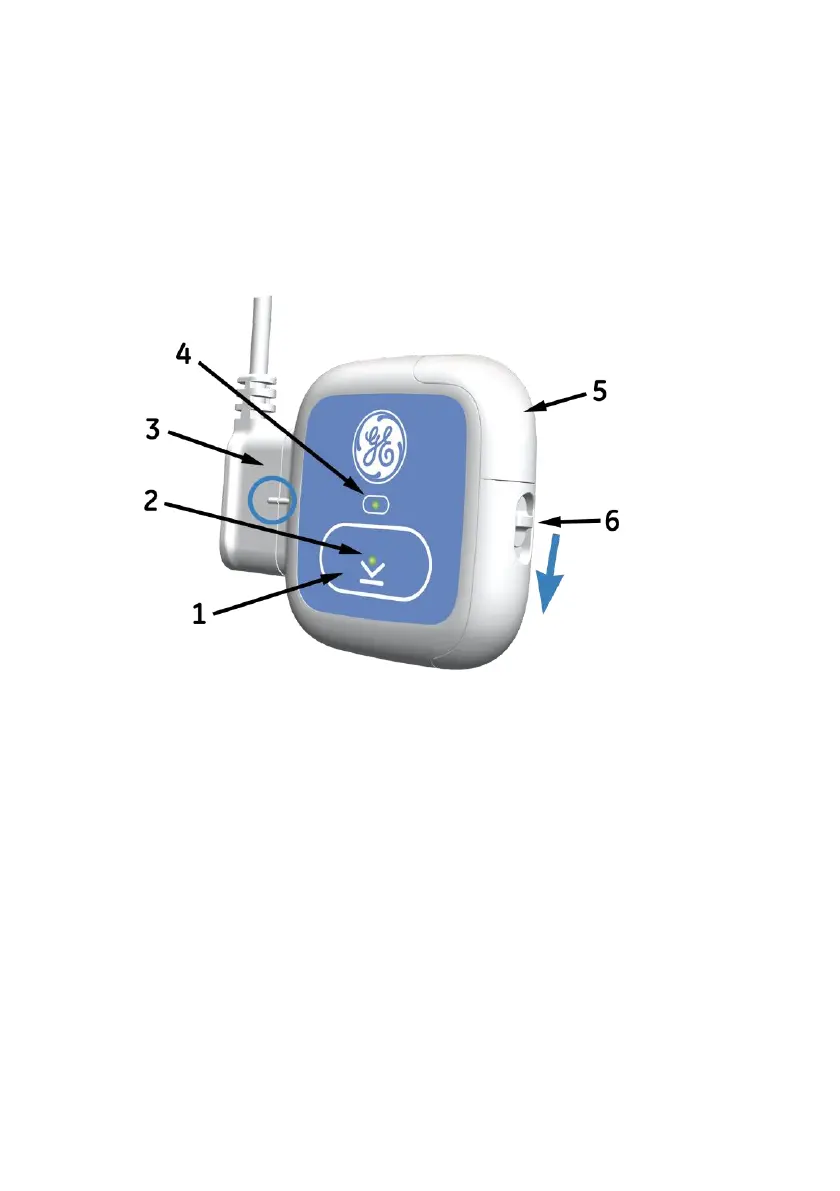

Operating Elements of the Recorder

1. Event Button

2. Event Button LED

3. Combined ECG Cable Connector and USB Cable Connector

4. Hookup Guidance LED

5. Battery Compartment

6. Battery Compartment Latch
