Preparing the Recording
46 SEER™ 1000 2067634-077 Revision B
Reattaching or Replacing the Battery Compartment
Door
To open the Battery Compartment Door, slide back the Latch as shown
in the previous section.
If you further open the Battery Compartment Door, it will detach from
the recorder housing.

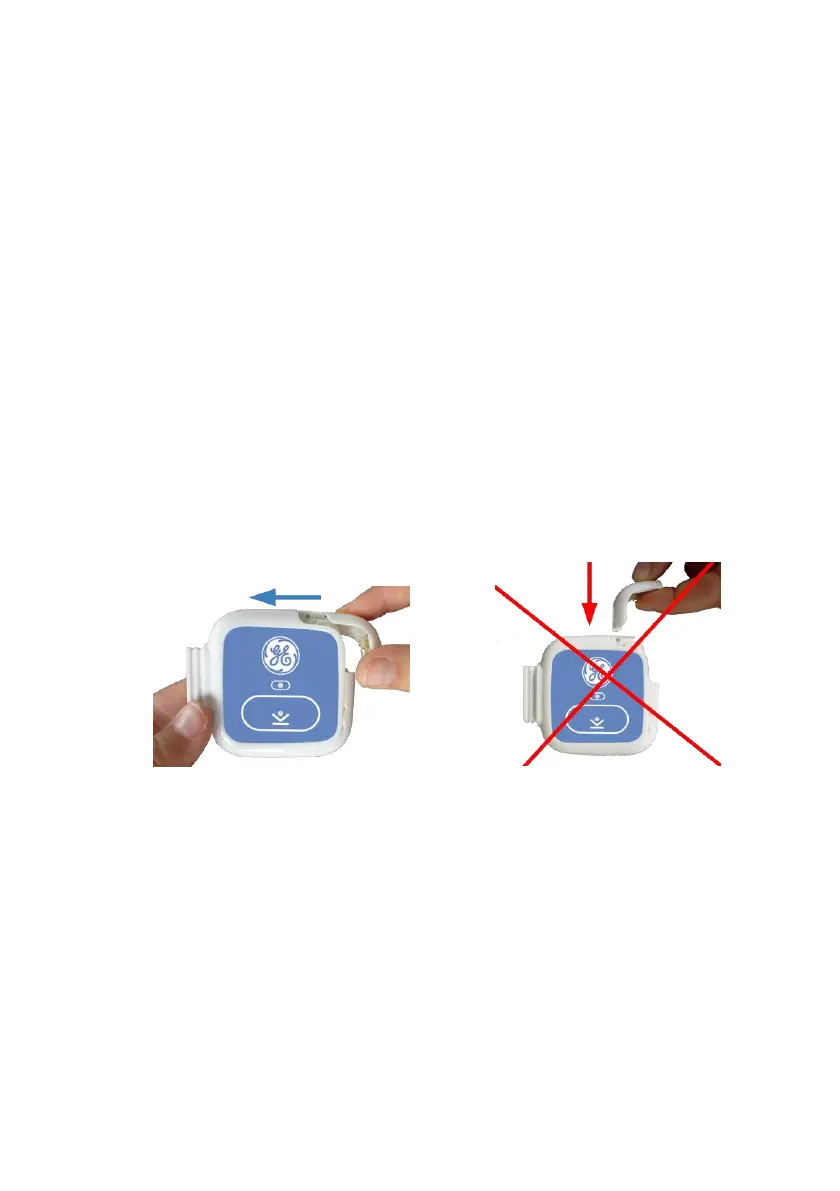

To reattach or to replace the Battery Compartment Door, hold the door
as shown in the left grahic below and push it into its bearings.
NOTICE
RECORDER DAMAGE – The Battery Compartment Door can be at-
tached to the recorder housing in one orientation only.
Attach the Battery Compartment Door as shown in the left graphic
below. Do not try to attach the Battery Compartment Door any other
way.
Switching on the Recorder
Press the Event Button in the middle of the recorder casing to switch on
the recorder.
NOTE
If both LED alternatively flash between green and yellow three times per
second, the recorder is defective and service is needed. Refer to the sec-
tion “How to Notify Service if the Recorder is Defective” on page 91.
