GEDA PH 650 - Control in the Car - Joystick with 5 Switching Positions

GEDA
®
Temporary Construction Hoist PH 650
Operating Manual Page 38 of 64 BL148GB2017 / 11
10.3.2.1 Operation
Approach landing
 Enter landing number required in the keypad (4).
The landing selected is indicated on the landing display (8).
 "#" Press the Start button.
The car moves to the selected landing.
Stop next landing
 Press button "Stop Next Landing" (5).
Car stops at the next landing level. Travel is then continued to the
target landing using the keypad.

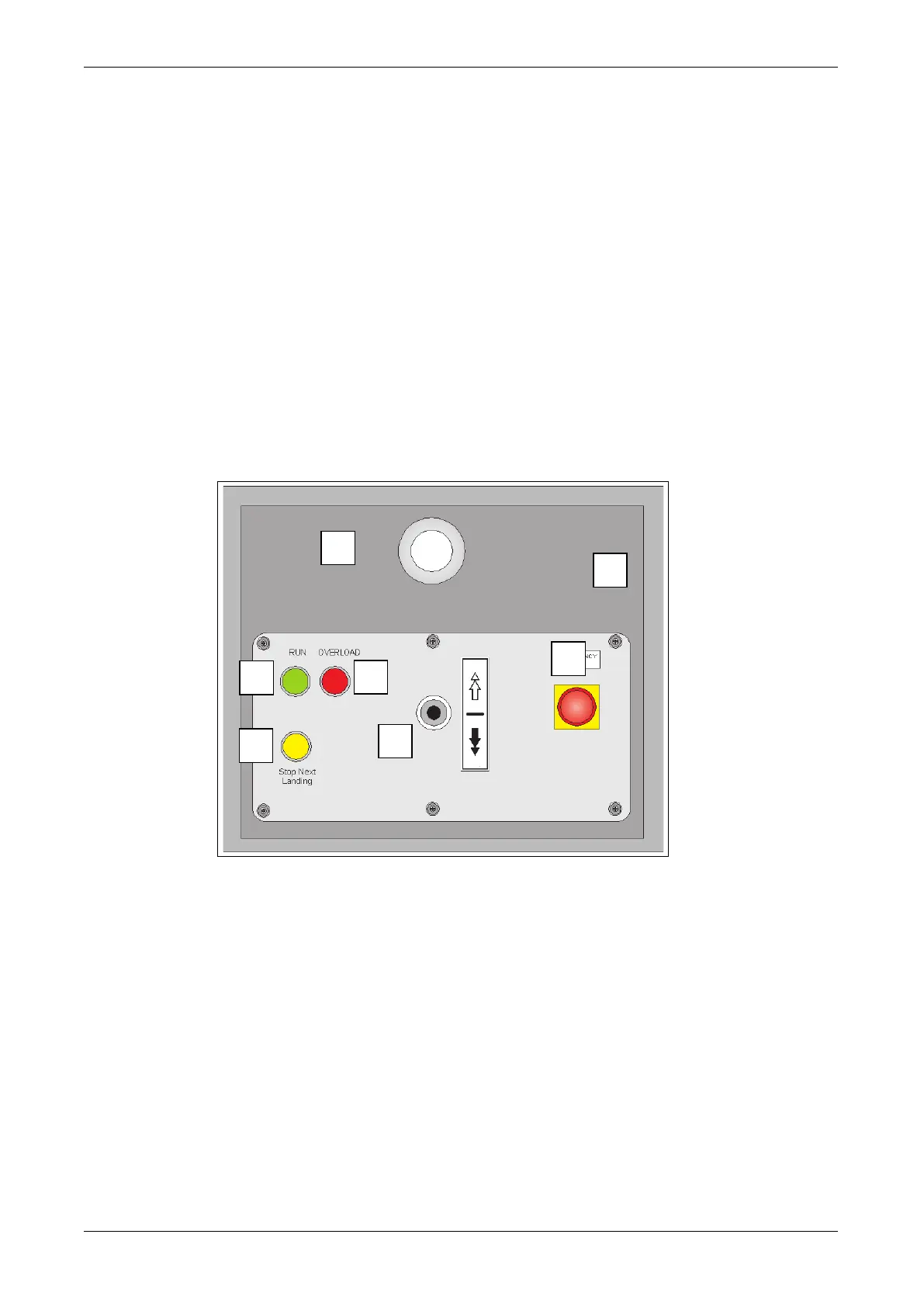

10.3.3 Control in the car – Joystick with 5 switching positions
1 = Car emergency lighting
2 = Control light, ready for service
3 = Overload warning light
4 = Stop Next Landing (SNL) Stop at next landing level
(only when landing approach bar is installed)
Illuminated when operated.
Press and hold EMERGENCY DOWN button.
after approx. 30 seconds, the car moves to the ground station.
5 = Joystick for upwards and downwards travel
6 = EMERGENCY STOP
1
6
4
5
3
2
7
