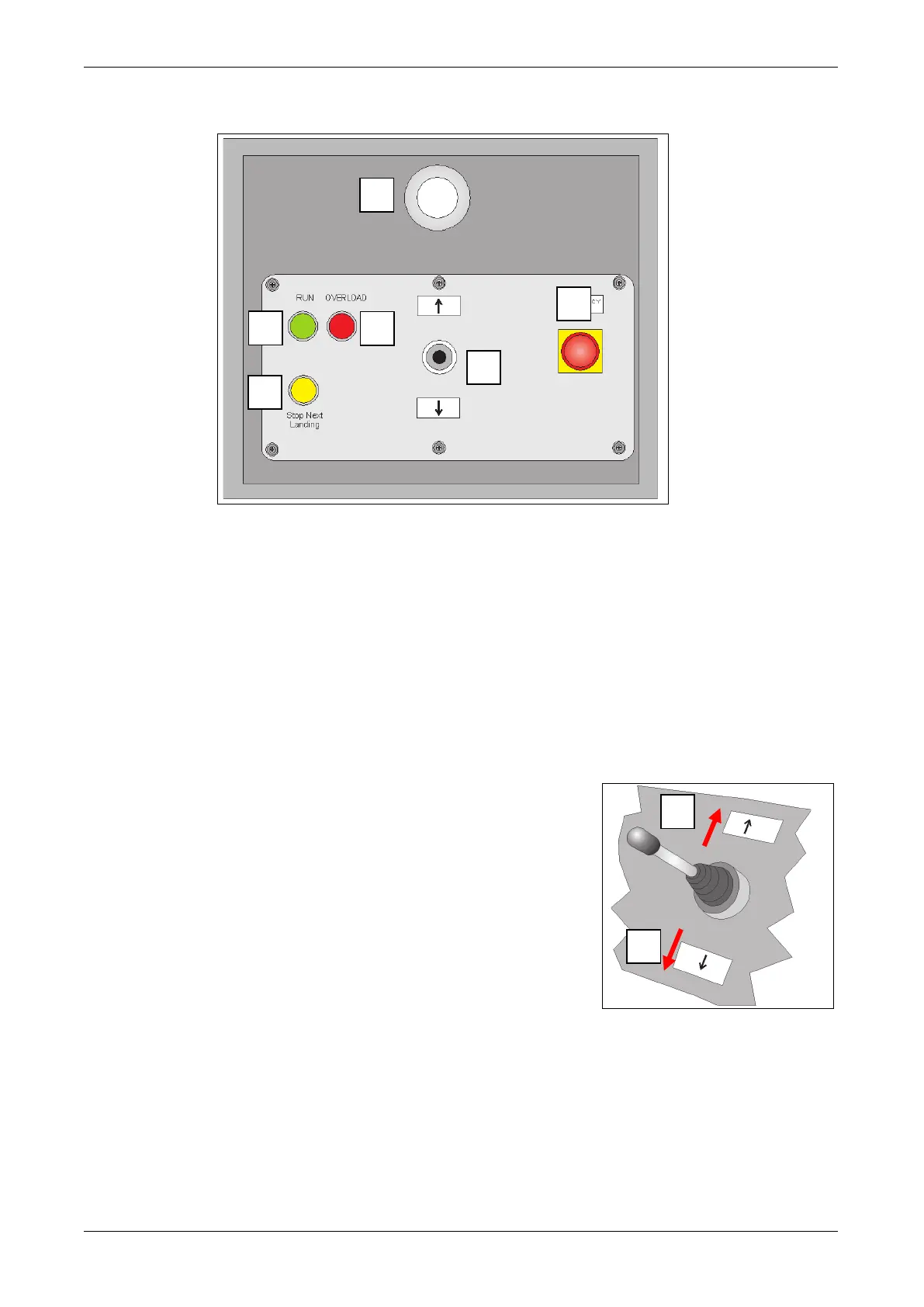

10.3.4 Control in the car – Joystick with 3 switching positions (Australia)
1 = Car emergency lighting
2 = Control light, ready for service
3 = Overload warning light
4 = Stop Next Landing (SNL) Stop at next landing level
(only when landing approach bar is installed)
Illuminated when operated.
Press and hold EMERGENCY DOWN button.
after approx. 30 seconds, the car moves to the ground station.
5 = Joystick
6 = EMERGENCY STOP
10.3.4.1 Operation
1 = Travel upwards
Press the joystick (1) upwards and hold.
2- = Travel downwards
Press the joystick (2) downwards and hold.
1
6
4
5
3
2
1
2
