Temporary Construction Hoist PH 650
Operating Manual Page 42 of 64 BL148GB2017 / 11

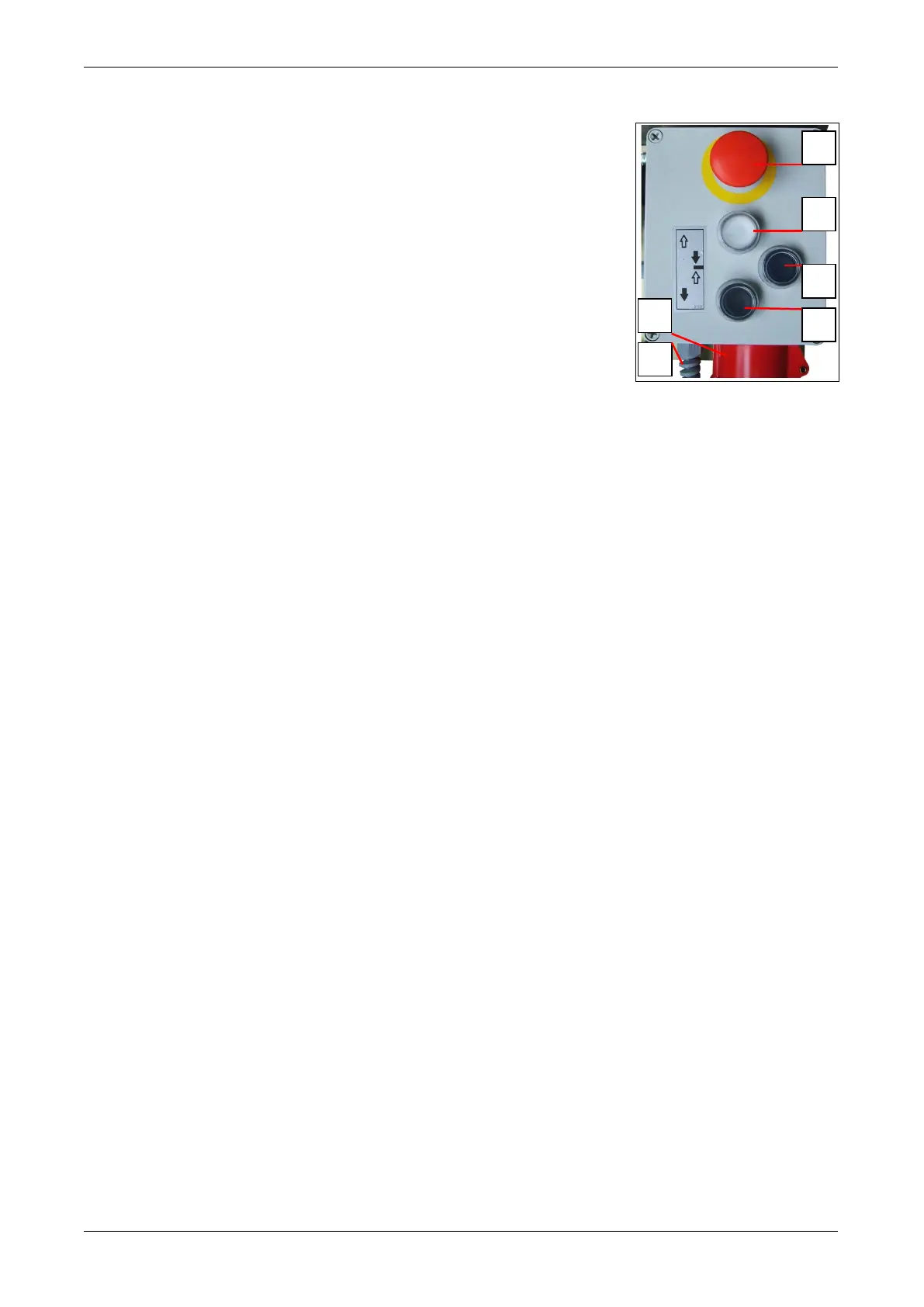

10.3.6 Landing switch box
The car can be stopped at any time using the
EMERGENCY-STOP button (1).
1 = EMERGENCY STOP button (does not engage)
3 = UP button
4 = DOWN button
5 = Stop Next Landing (SNL)
Stop at next landing level
The supply line (7) [7-pole plug, red] from the first landing level door switch
box is plugged into the ground station at the switch box.
If there are several levels with level controls, the supply line (7) [7-pole
plug, red] from the second level is plugged into the socket (6) on the
control of the level below.
The dummy plug is always changed over from the switch cabinet of
the ground station to the top landing call box.
