GEDA PH 650 - Ground-Station Switch Box

GEDA
®
Temporary Construction Hoist PH 650
Operating Manual Page 41 of 64 BL148GB2017 / 11
Stop Next Landing
Stop at the next landing above
 Press the joystick (1) upwards and hold.
 Press the button "Stop Next Landing".
The button "Stop Next Landing" illuminates.
Car stops at the next landing above.
Stop at the next landing below
 Press the joystick downwards (2) and hold.
 Press the button "Stop Next Landing".
The button "Stop Next Landing" illuminates. Car stops at the next landing
below.

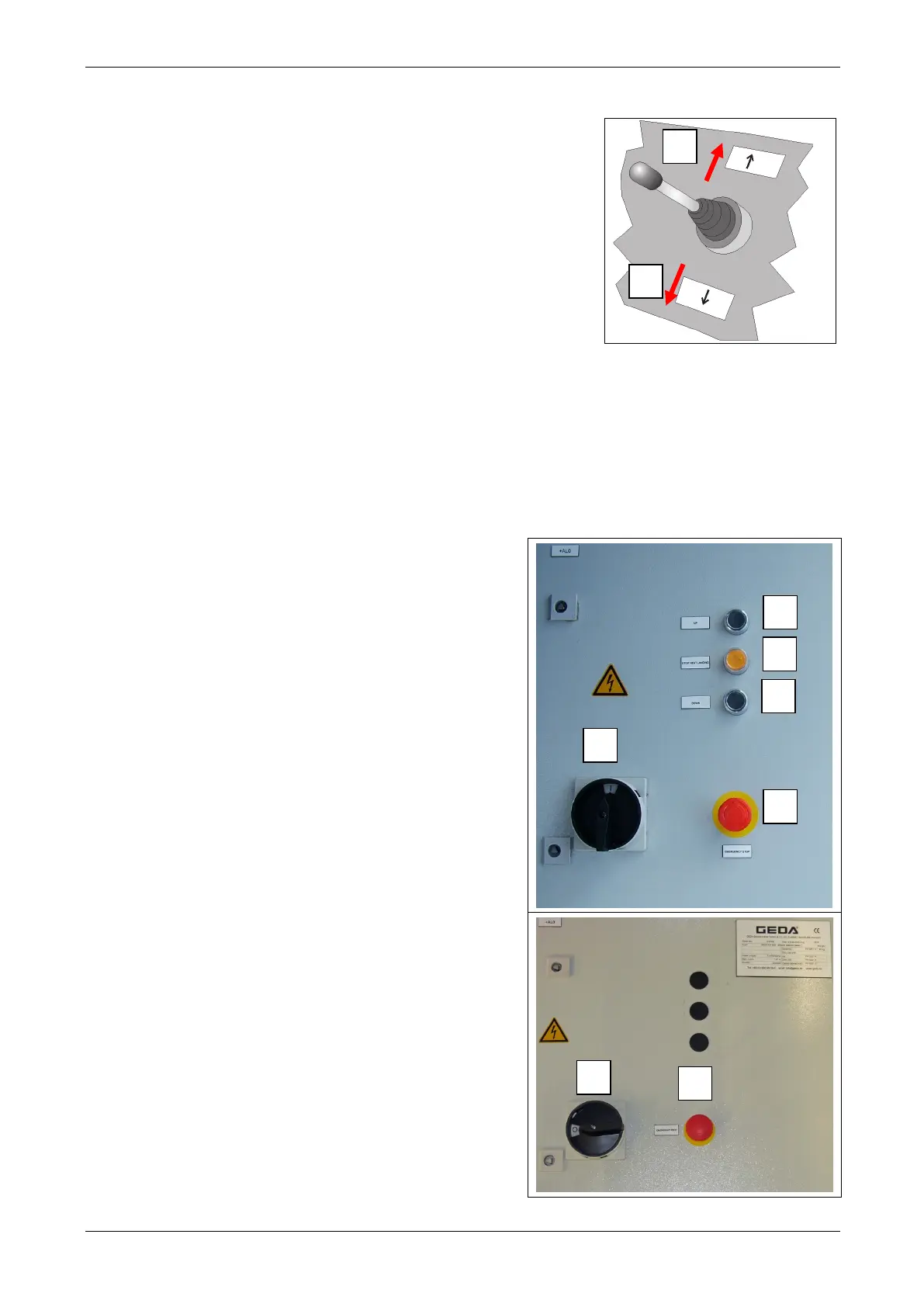

10.3.5 Ground-station switch box
For joystick control in the car
1 = Main switch
Switches the hoist on or off at
the beginning/end of work or if
there are faults or for servicing.
2 = EMERGENCY STOP
3 = UP button
4 = Stop Next Landing /
EMERGENCY DOWN button:
after approx. 30 seconds, the
car moves to the ground station.
5 = DOWN button
For landing preselection or "Stop
Next Landing" control in the car
1 = Main switch
Switches the hoist on or off at
the beginning/end of work or if
there are faults or for servicing.
2 = EMERGENCY STOP
1
2
5
4
3
2
1
1
2
