Rev. 00 04/19
84

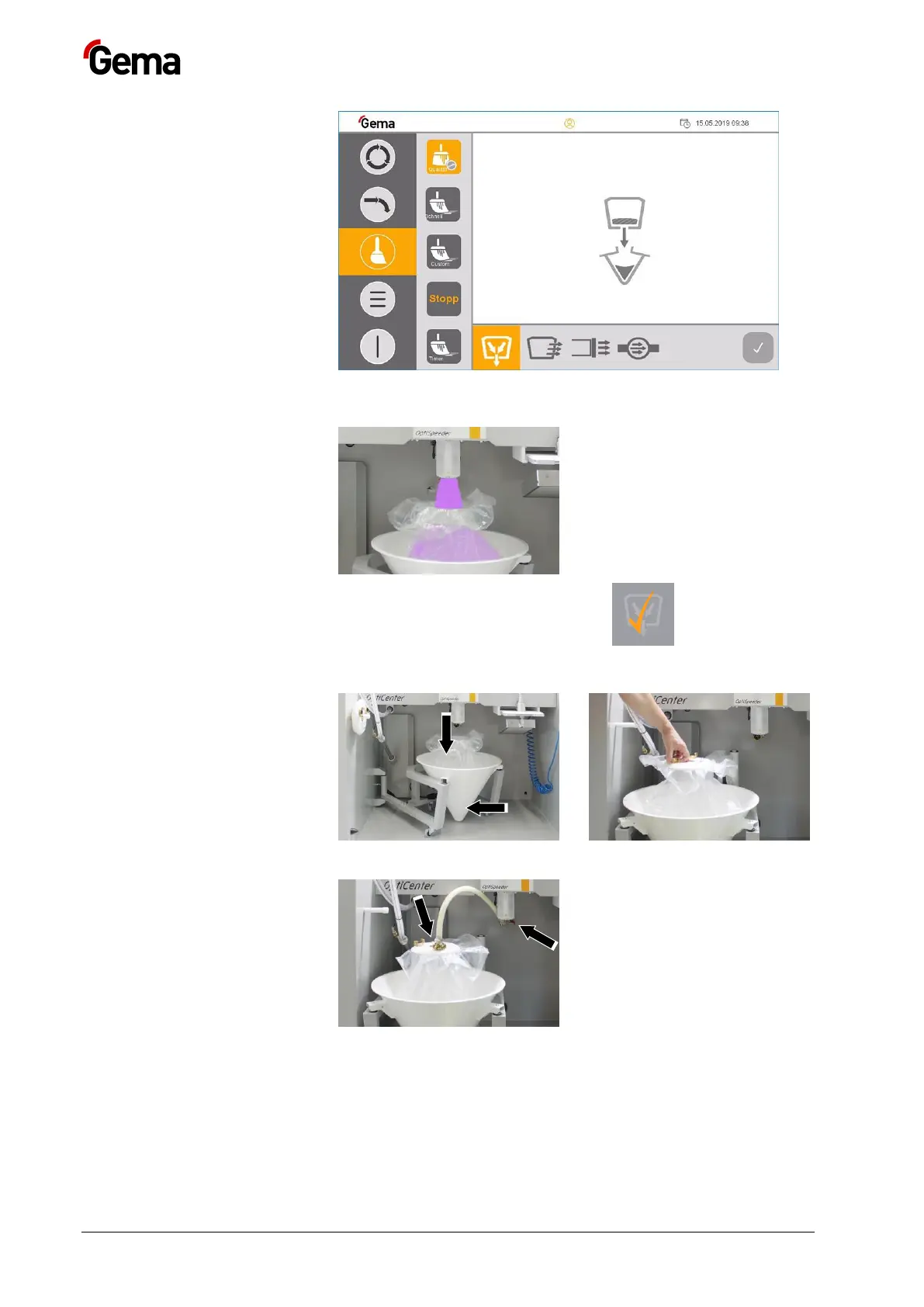

Maintenance / Repairs OptiCenter OC06
14.
15. The pinch valve below the OptiSpeeder opens and the powder in the
OptiSpeeder flows into the powder bag
16. The process step is complete when the key looks like this.
The key can be pressed once again if necessary. This is a sign that
the next cleaning step will be activated.
17. 18.
19. Connect the extraction system and open the ball valve
20. Connect the recovery hose to the cover
