PART 4
ENGINE/DC CONTROL
Page 102
Section 4.3
Operational Analysis
ENGINE STARTUP AND RUNNING
With the fuel solenoid open and ignition occurring, the engine starts. Engine startup and running may be briefly described as
follows:
•The ignition magnetos deliver a speed reference signal to the controller via Wire 18. Once the controller determines that the
engine is running, the controller (a) terminates cranking, (b) continuously energizes the choke solenoid (open position), and (c)
turns on an “engine warm-up timer”.
Note: On 8kW and 10kW units the choke is de-energized to the open position (Wire 90 open from ground).
•The “engine warm-up timer” will run for 5 seconds. When this timer finishes timing the controller’s logic will initiate a transfer to

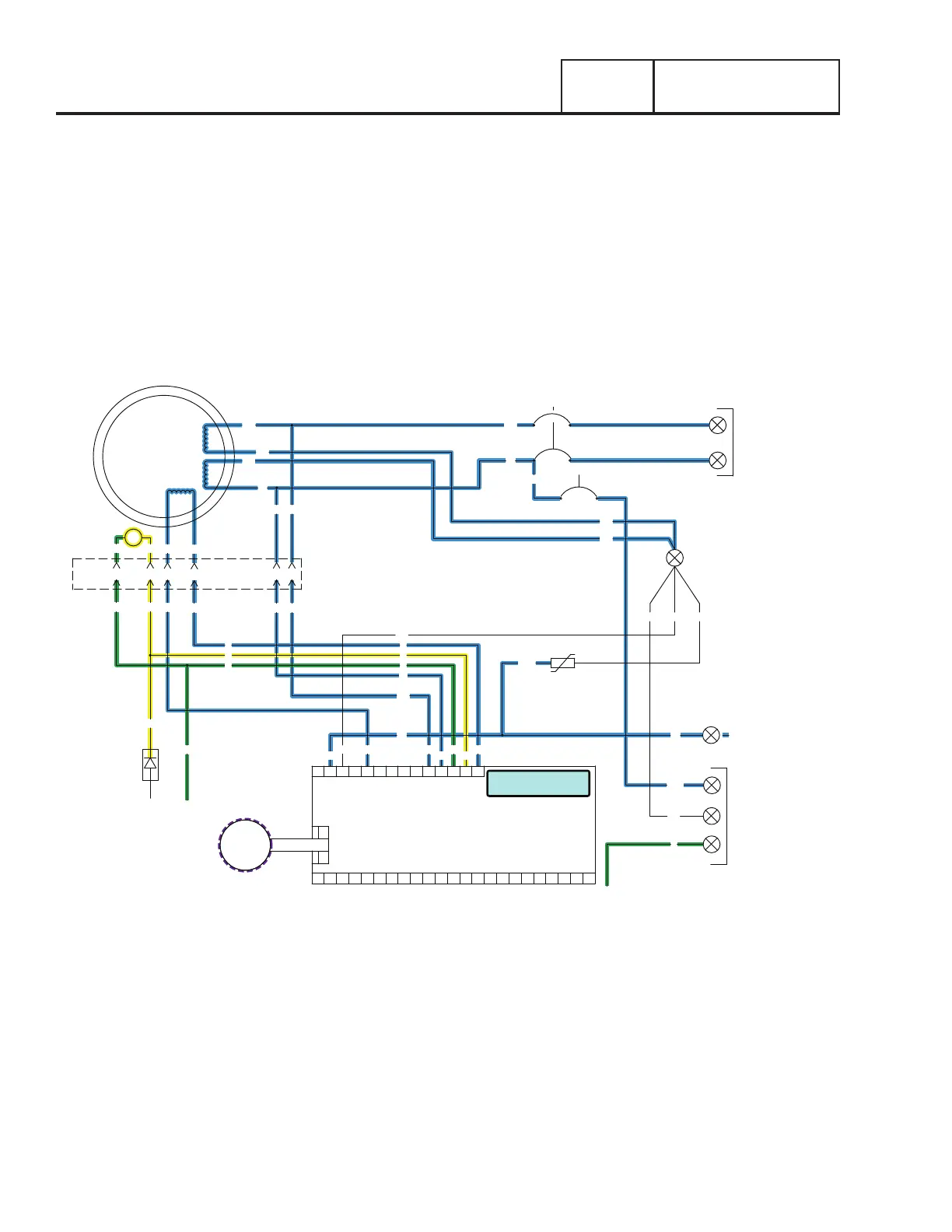

the “Standby” position. As shown in Figure 99, the timer is still running and transfer has not yet occurred.
•Generator AC output is available to the transfer switch Terminal Lugs E1 and E2 and to the normally open contacts of the transfer
relay. However, the transfer relay is de-energized and its contacts are open.
