DISASSEMBLY
PART 6
Page 153

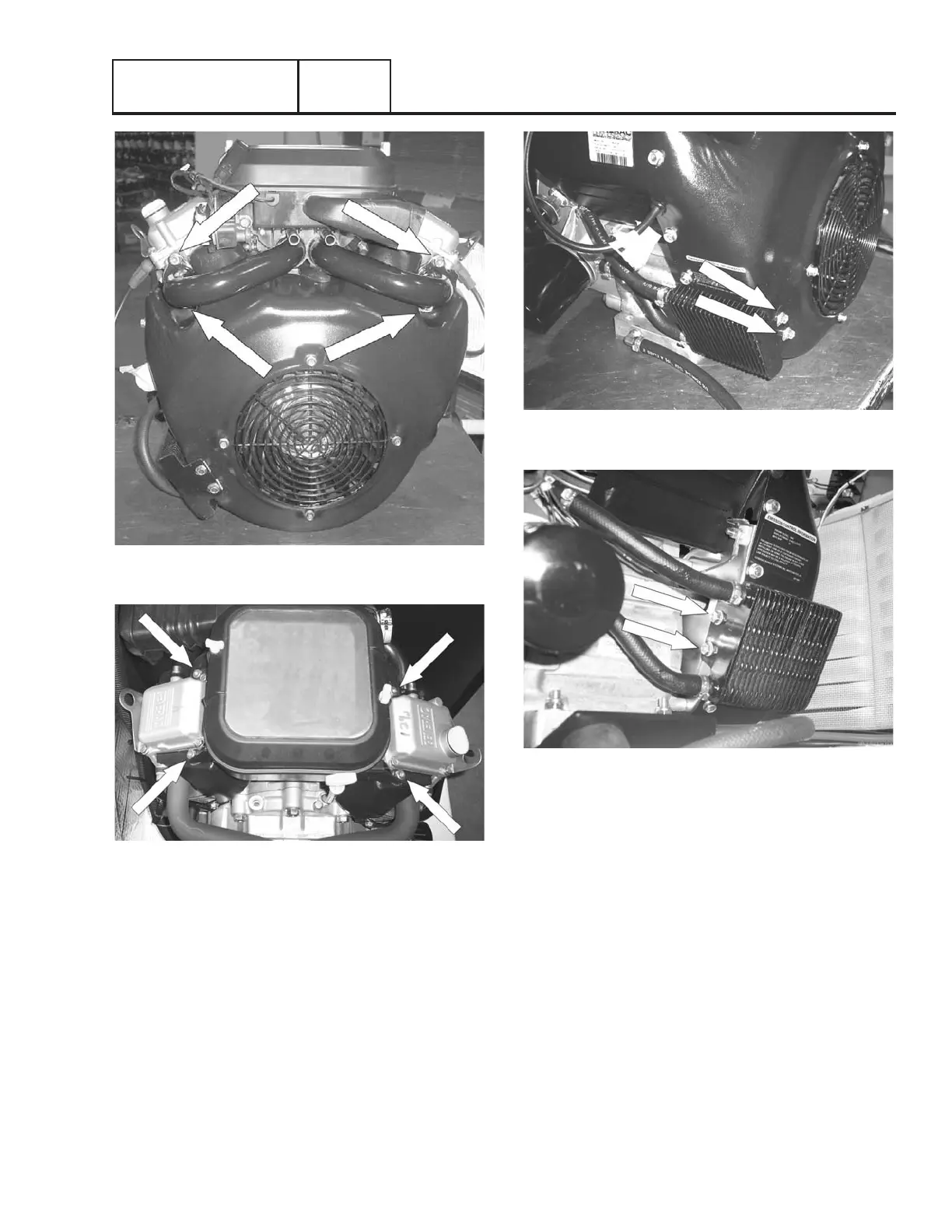

Figure 176.
Figure 177.
13. Unbolt Oil Cooler: Using a 10mm socket remove the two
10mm bolts from the front of the oil cooler. See Figure
178. Remove the two 10mm bolts from the rear of the oil
cooler. See Figure 190.
Figure 178.
Figure 179.
14. Remove Blower Housing: Using a 4mm allen wrench
remove one button head cap screw from top of blower
housing. Using a 10mm socket remove one 10mm bolt
from the top of the blower housing. See Figure 180. Using
a 10mm socket remove four 10mm bolts from the right-
side of the blower housing, (see Figure 181) and four
10mm bolts from the left-side of the blower housing. See
Figure 182. Remove blower housing.
Section 6.1
Major Disassembly
