G-858BP Backpack Mag Operators Manual
Connect the
primary pack
frame belt buckle
about your hips
and tighten the
belt. The belt
should sit above
your hips to
support the
majority of the
pack weight.
Identify the
secondary C
Waist belt and
thread it through
the metal tangs on
the console
attachme
(see pictures).
Attach the conso
belt buckle and
tighten the belt
strap as shown i
Figure 20. Once
the shoulder and
waste belts are
secure and
tightened, at
the second vertica
Console support
strap and tighten
both vertical
console straps
This will give vertical support to the console so that it is stable on the front of the body (Figure 21 final
assembly)

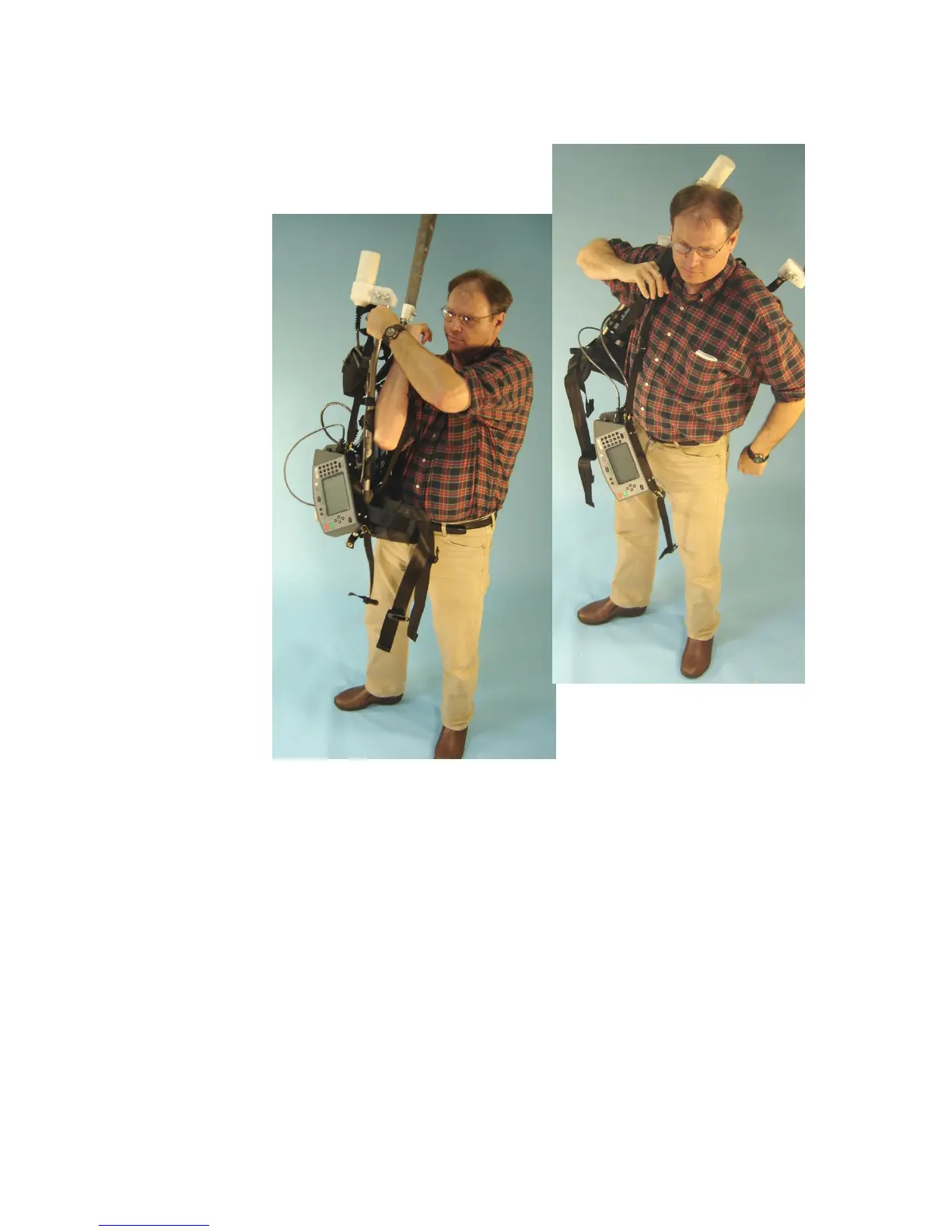

Figure 21 Wearing the Shoulder
Harness
onsole
nt bar
le
n
tach
l
.
Finally, connect the front horizontal cross support strap under the clavicles. There are several
additional adjustments that can be made to the pack in terms of the waist straps, shoulder straps, console
support straps and of course the frame itself. Care must be taken not to use any hardware on the pack other
that than which was supplied or that has been screened for magnetic cleanliness.
21
