G-858BP Backpack Mag Operators Manual
Pack
Frame
Belt
Console
retaining
strap
Disconnect
left console
strap
Grab Console
strap for
stability

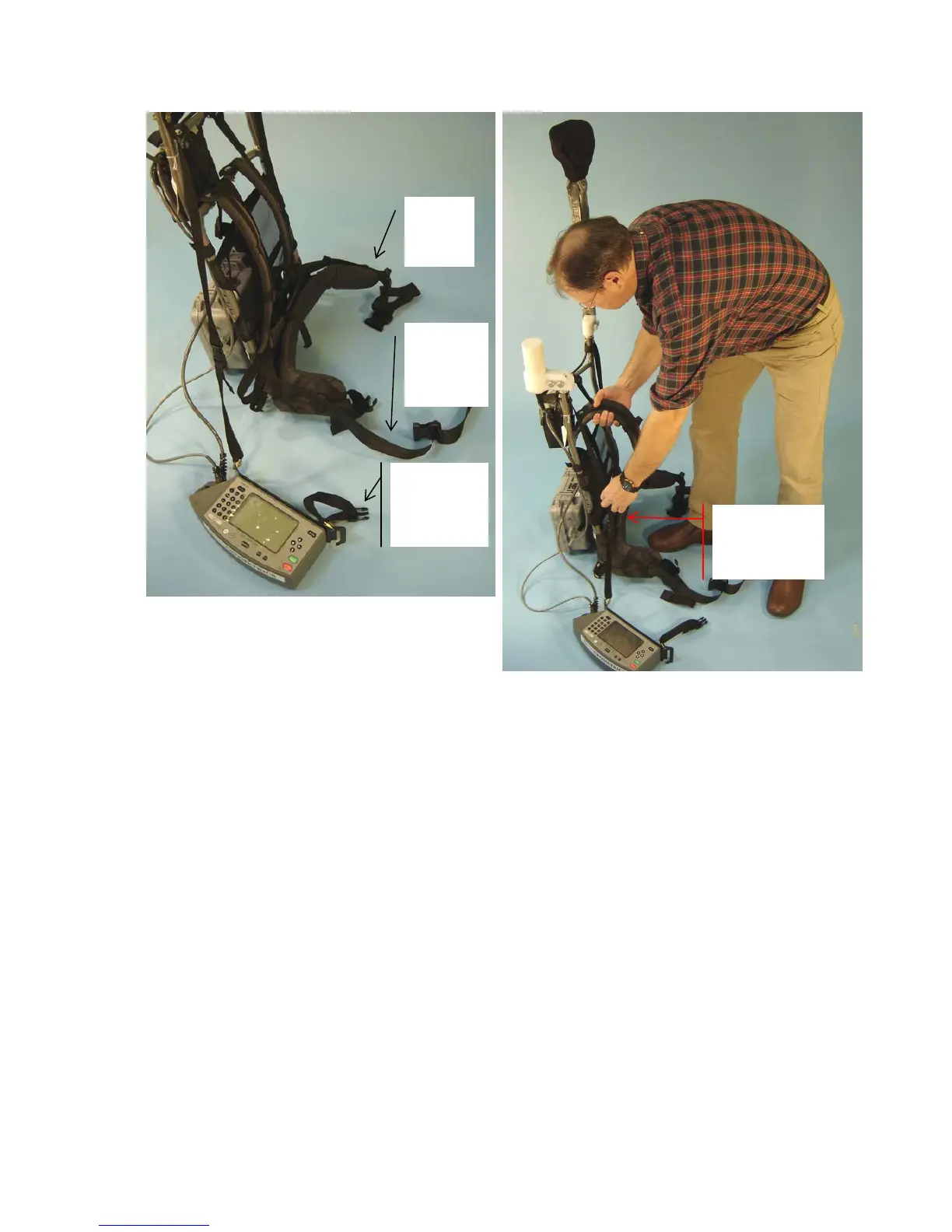

Figure 20 Getting Pack Frame ready for
installation
Putting on the Pack Frame
Putting on the pack frame may be most easily performed on a raised surface such as the back of a
pickup truck or table. To put on the pack frame, loosen the console retaining strap and remove the G-
858BP console from the transportation configuration above the battery and swing it out to the side.
Remove the left (facing forward) vertical console retaining strap. Open up both waist belt
assemblies. Grasping the G-858BP console retaining straps and the right shoulder strap as shown, lift the
complete assembly up an onto your right shoulder, making sure the G -859 Console doe not swing into any
hard object. See Figures above. Next, work your left arm through the other shoulder harness and seat the
pack frame on your shoulders. This may be more easily accomplished with a second person to help make
initial adjustments to the fit of the frame.
