4.3.9 3GPP/RTSP
The 3GPP / RTSP Server enables video and audio streaming to your 3G-enabled mobile
phone.

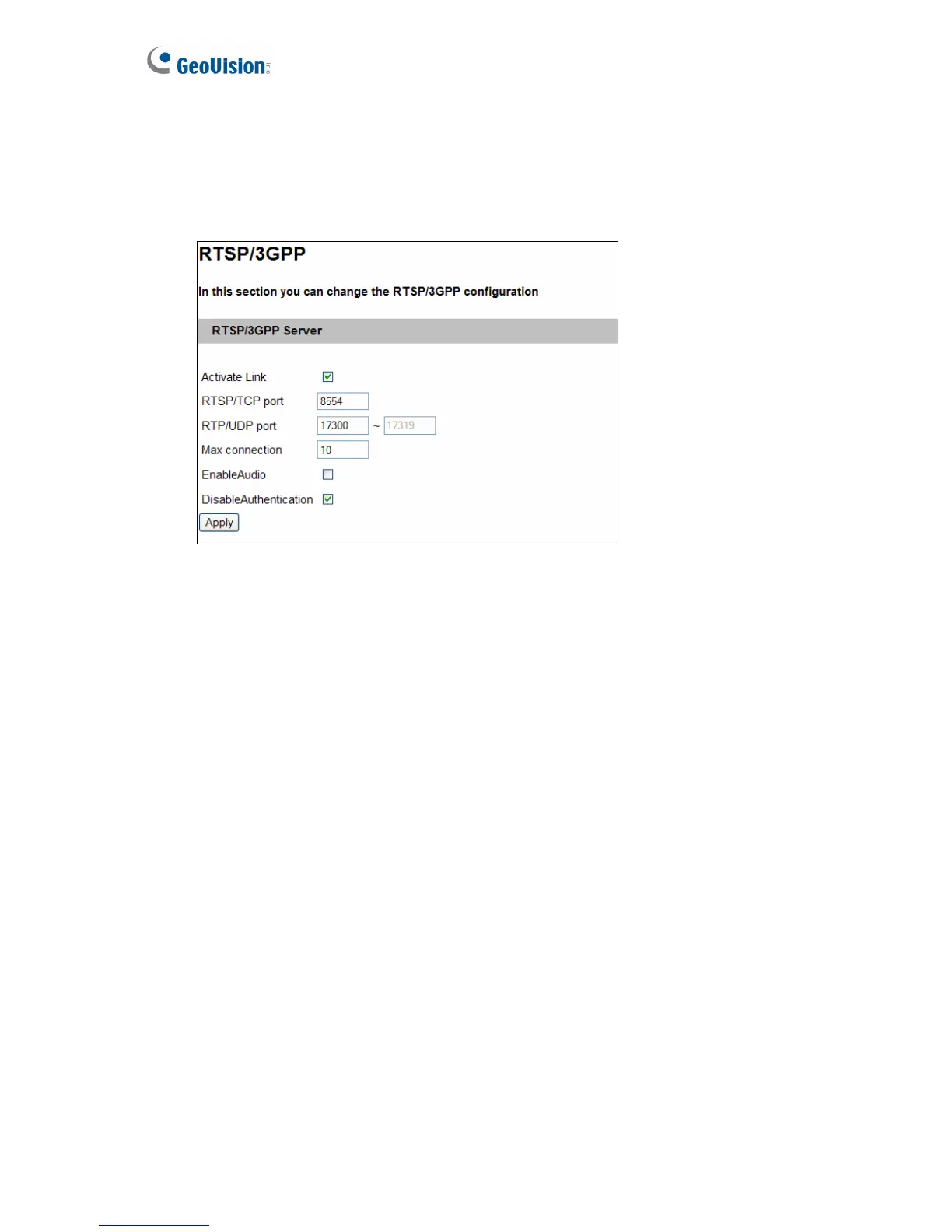

Figure 4-27
Activate Link: Enable the 3GPP / RTSP service.
RTSP/TCP Port: Keep the default value 8554, or modify it if necessary.
RTP/UDP Port: Keep the default range from 17300 to 17319, or modify it if necessary.
The number of ports for use is limited to 20.
Max Connection: Set the maximum number of connections to the GV-Video Server.
The maximum value is 20.
Enable Audio: Enable audio streaming.
Disable Authentication: By default, when accessing live view through RTSP
command, the ID and password of the GV-Video Server are required. Select this
option to disable the authentication prompt. For details on the RTSP command, see
Appendix D.
For details on remote monitoring with mobile phones, see 10.4 3G Mobile Phone.
70
