Getinge MP-129 Series - Cold Water Supply; Overflow Drain

MP–129 Water-Saver
350545 2–7
Cold Water Supply Connect the 3/4” NPT water supply piping to the water supply elbow on the
top of the reservoir (labeled CWI on installation drawing HS3472).

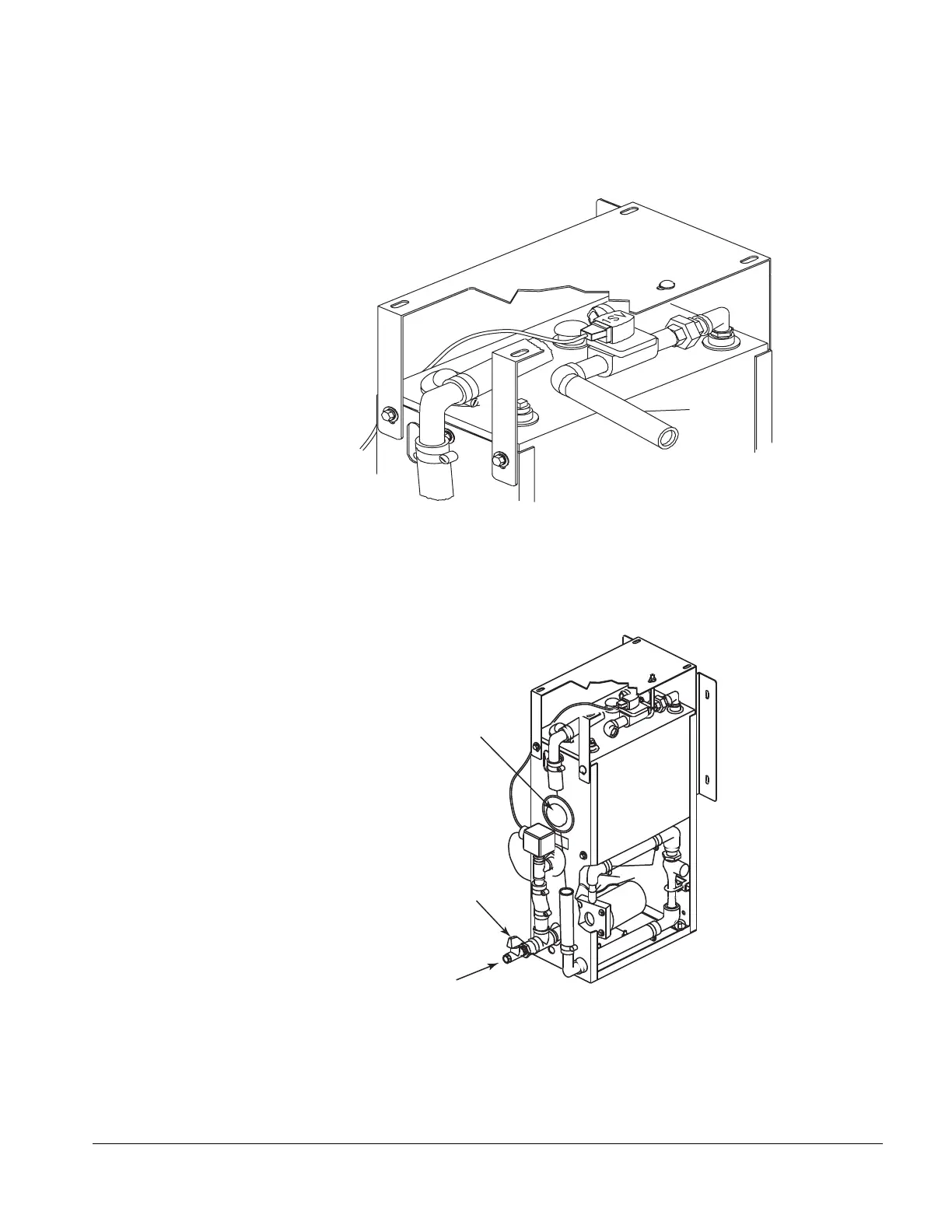

Figure 2–2. COLD WATER CONNECTION
Overflow Drain Connect a drain line to the 1¼" female pipe thread fitting on the overflow
drain port on the side of the water-saver reservoir. Connect the manual
drain valve to the same drain line.
Figure 2–3. DRAIN CONNECTIONS
3/4" NPT
350545-Y
Overflow
Drain Outlet
Manual
Drain Valve
Water Saver
Drain Outlet
350545-AF
