Getinge MP-129 Series - Connecting the Electrical Cables

MP-129 Installation
2–8
CONNECTING THE ELECTRICAL CABLES (MP-129 A & B)
Refer to Figure 2–4 and wiring diagram W1297, included in the water-saver
package.

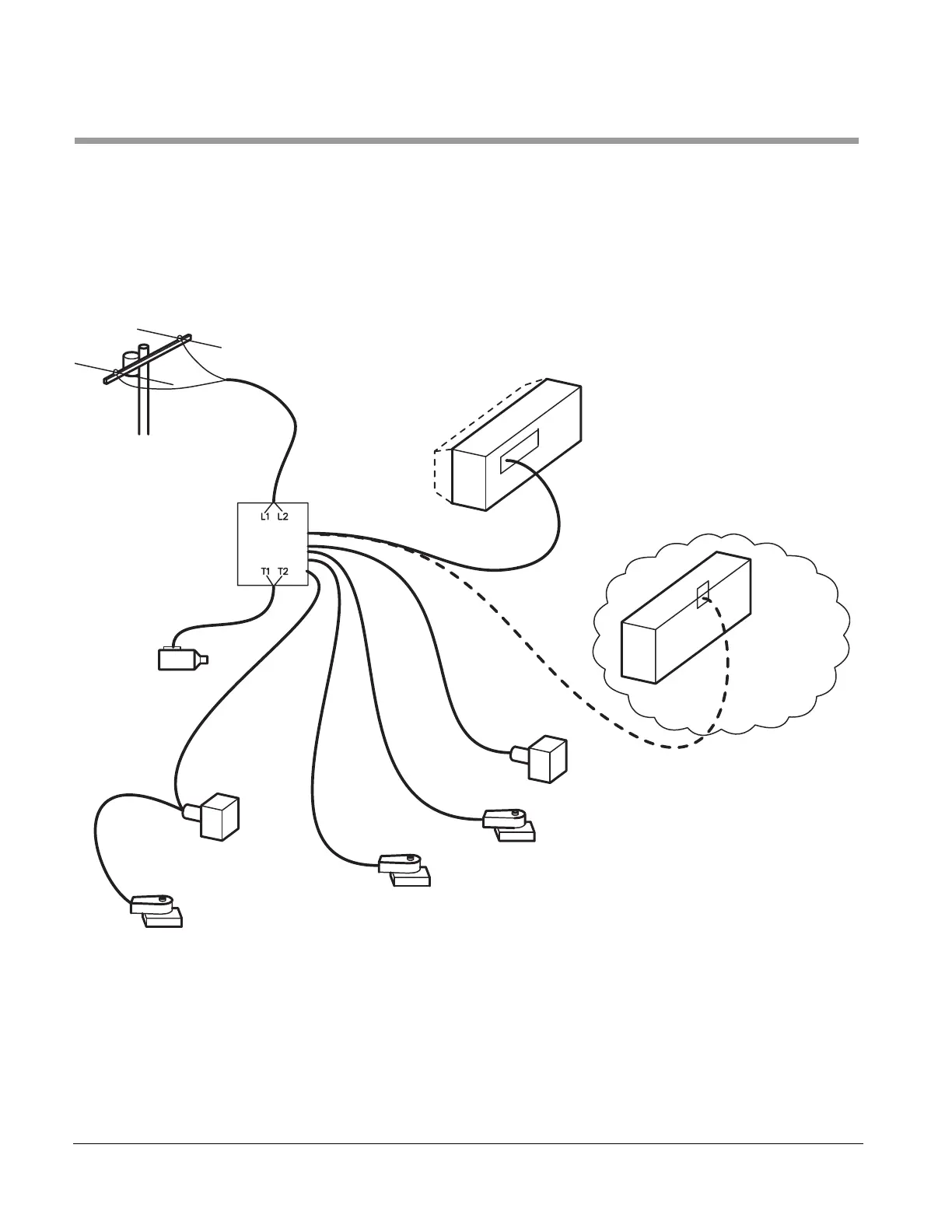

Figure 2–4. CABLE CONNECTIONS (MP-129 A & B)
350545-W
3500/3600
ONLY
Sterilizer
Power Box
1A
Pressure Switch
1PS
Water to Ejector
6SV
Drain to Water-Saver
15SV (20SV)
Pump Motor
1B
Water-Saver
I/F Box
47A
120 VAC
Power Supply
Sterilizer
Control Box
2A
M/C 3500 and 100 Series (MP-129A)
M/C 3600 and 200 Series (MP-129B)
Cold Water
1SV
Temperature
Control Switch
1S
