MP–129 Water-Saver
350545 2–13
Motor Start Relay (11A) 1. Route a 120VAC, 60Hz, 30AMP power source to motor
start relay 2K and connect to terminals L1, L2, and GRN.
2. The connections from the motor start relay to the water-
saver motor should be factory assembled. If the wiring
should be disconnected, refer to the wiring diagram when
replacing wires.
Be sure the overload heaters are in place at terminals T1 and T2 in the
motor start interface box (see Figure 2–6).

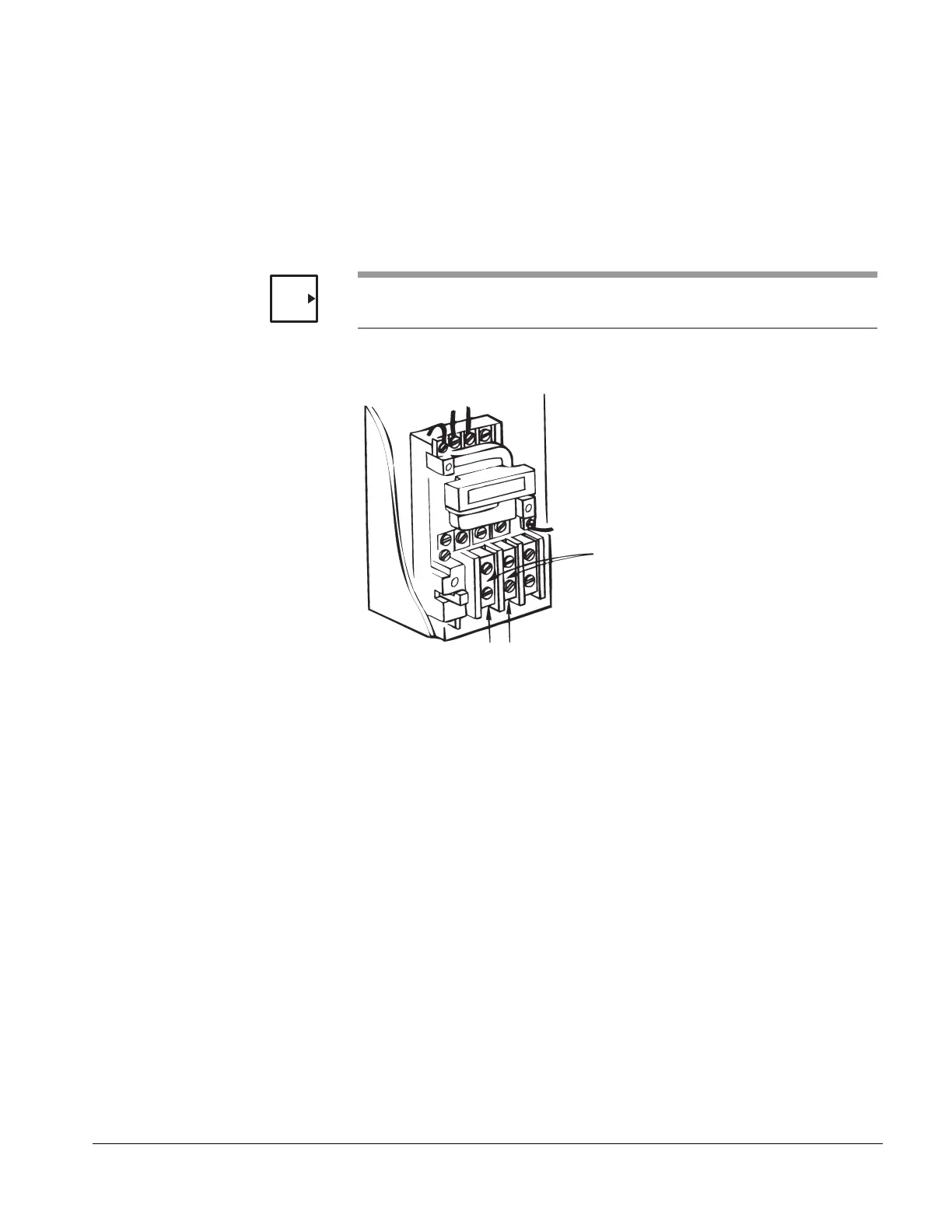

Figure 2–6. OVERLOAD HEATERS
3. Check the pump motor for proper rotation when electrical
power is supplied to motor start relay 2K.
See "CHECKING THE ROTATION OF THE PUMP MOTOR" on page
2-14.
NOTE
OVERLOAD
HEATERS
T1 T2
350545-K
