MP-129F Installation
3–10
CHECKING THE OVERLOAD RELAY
To check the overload relay:
1. Remove the cover from Water-Saver I/F Box 11A.
2. Verify the overload current selector as set as follows:
• 115 VAC – set to 26 AMPS
• 230 VAC – set to 13 AMPS
3. Manually turn ON the Water Saver ON (DO14) output on
the sterilizer. Verify the water-saver turns ON.
4. Press the test button. Verify the pump motor stops running.
5. Reset the overload relay.
6. Manually turn OFF the Water Saver ON (DO14) output.
7. Reinstall the I/F box cover.

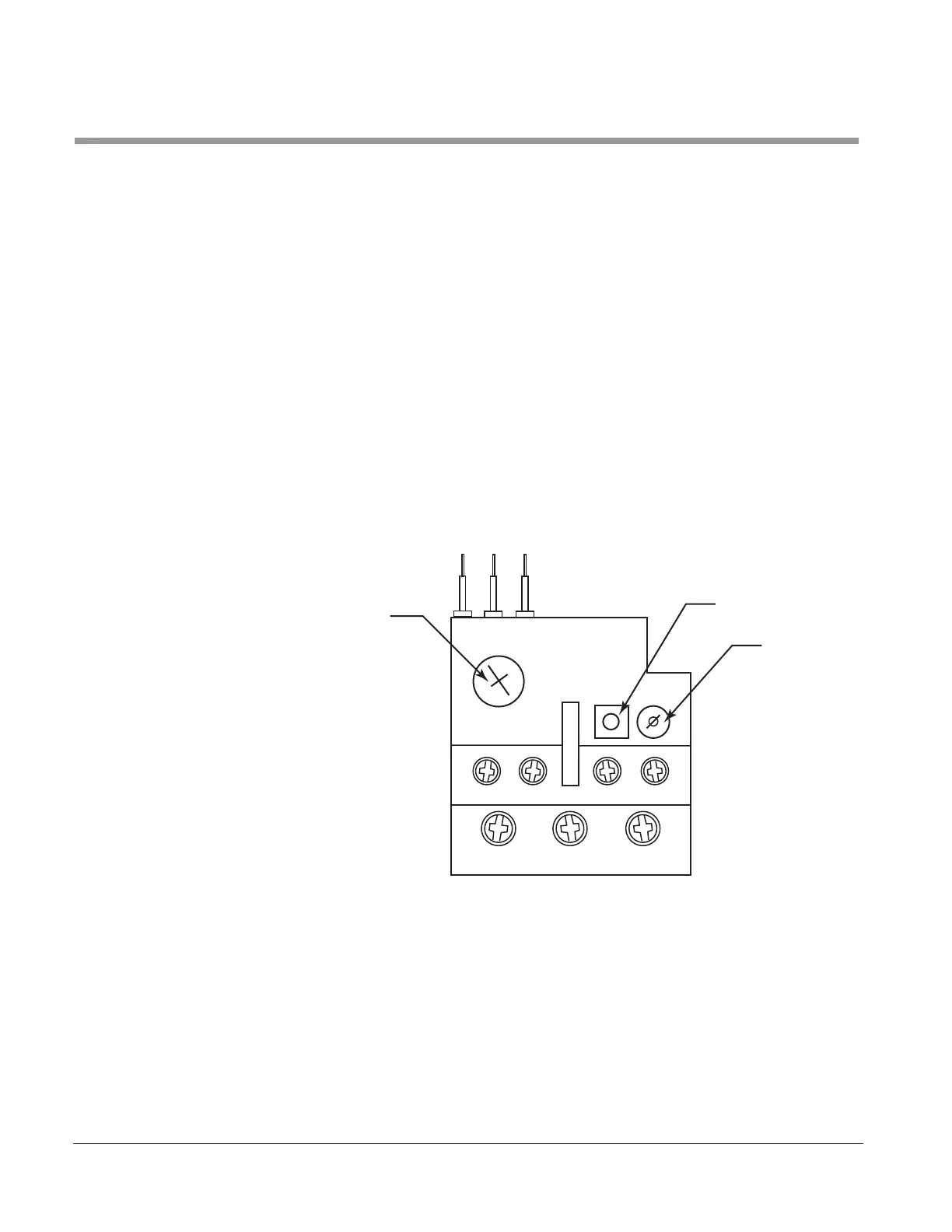

Figure 3–4. OVERLOAD RELAY
98 97 96 95
NO
NC
T1 T2 T3
246
350545-AG
Reset Switch
Overload Current
Selector
Test Button
115 VAC – 26 AMPS
230 VAC – 13 AMPS
