MP-129 Series Water-Saver
350545 1–3
MP-129F Water-Saver The operation of the MP-129F Water-Saver (see Figure 1–2) is controlled by
the sterilizer software. See Theory of Operation — “MP-129F Water-Saver”
on page 1–6 for a detailed description.
Water-Saver I/F Box 11A is mounted on the water-saver unit. Water to
Ejector solenoid valve 6SV and Water-Saver ON solenoid valve 15SV are
connected directly to sterilizer Control Box 2A.

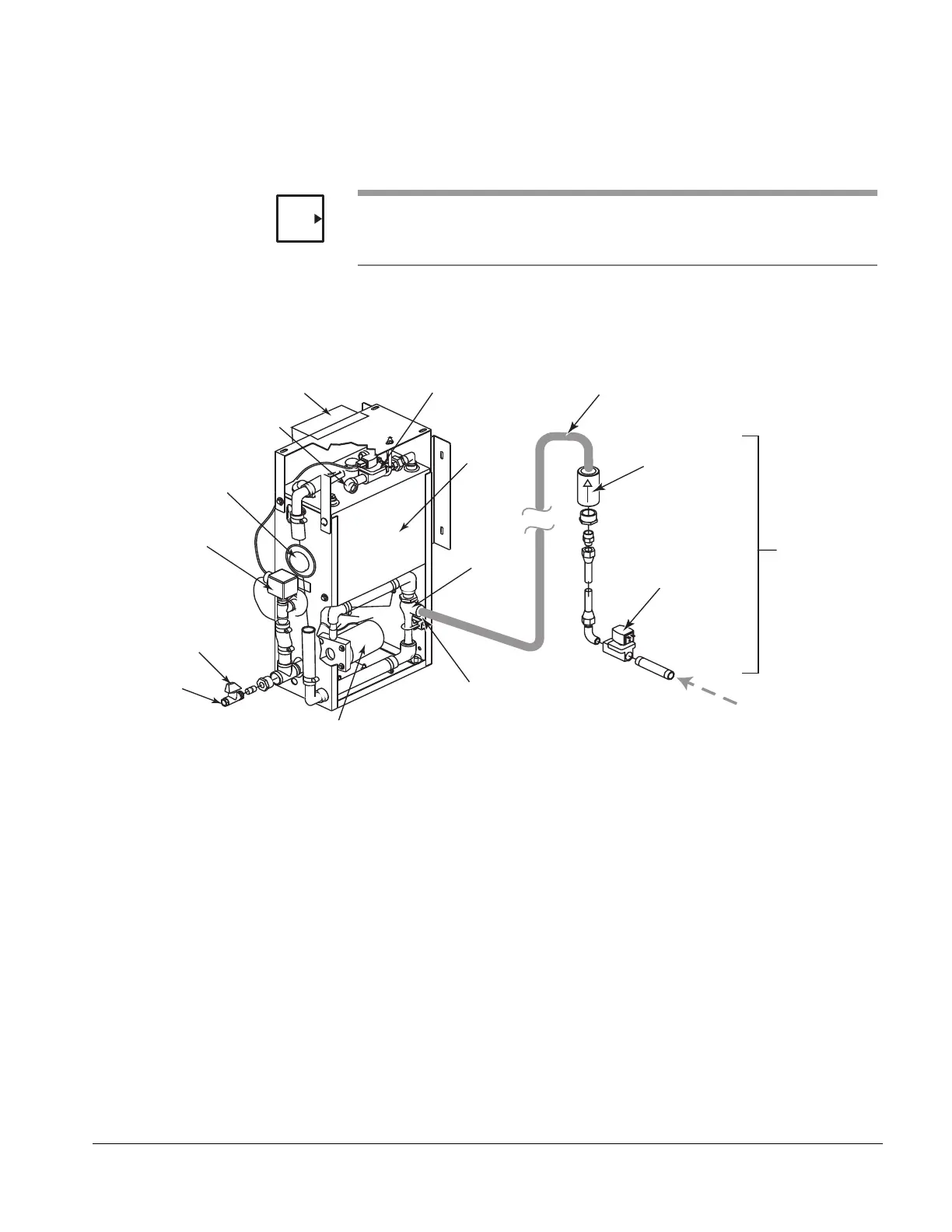

Figure 1–2. MP-129F WATER-SAVER PACKAGE
NOTE
Temperature
Control Switch
1S
Overflow
Drain Outlet
Manual
Drain Valve
Water Supply
Inlet
Water to Tank
Solenoid Valve
1SV
Reservoir
Recirculating
Pump
Ejector
Ejector
Vacuum Inlet
Water Saver
Drain Outlet
Water-Saver ON
Solenoid Valve 15SV
Check Valve
9CV
Exhaust from
Sterilizer
350545-AC
Parts Mounted
on Sterilizer
Water-Saver
I/F Box
11A
Copper Tubing
(by customer)
