MP–129F Water-Saver
350545 3–5
CONNECTING THE PIPING
Each sterilizer being fitted with the water-saver must be modified by
installing solenoid valve 15SV, check valve 9CV, and the copper tubing to
connect into the water-saver.
Solenoid Valve 15SV and
Check Valve 9CV
Refer to the piping assembly drawing and piping schematic included with
the water-saver when installing the piping modification package.
Apply pipe thread sealant compound or pipe sealant tape to all pipe fitting
threads.
Cold Water Supply Connect the 3/4” NPT water supply piping to the water supply elbow on the
top of the reservoir (labeled CWI on installation drawing HS3472).

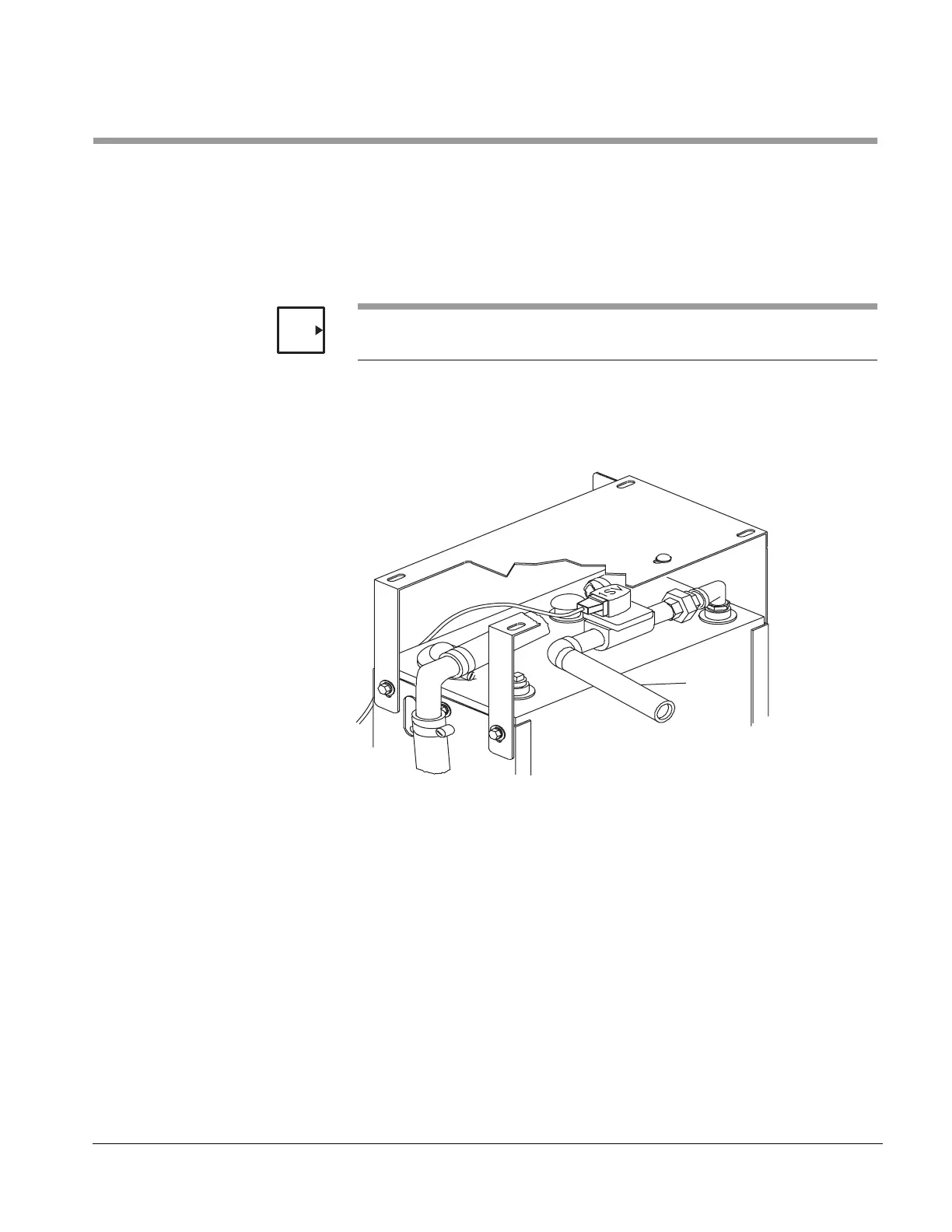

Figure 3–1. COLD WATER CONNECTION
NOTE
3/4" NPT
350545-Y
